VGA-P014458-QGG Datasheet - United Monolithic Semiconductors

VGA-P014458-QGG - 17-27GHz Variable Gain Amplifier

The P014458-QGG is a variable gain broadband three-stage monolithic amplifier.

It is designed for a wide range of applications, typically commercial communication systems.

The circuit is manufactured with a power pHEMT process, 0.15µm gate length, via holes through the substrate and air bridges.

It

VGA-P014458-QGG Features

* 24 On board measurements 20

* Broadband performance 17-27GHz

* 20dB gain

* 28dBm output IP3 @ gain max

* 24dB gain control range

* 28L-QFN5x5

* ESD protected (see page 13) Linear Gain (dB) 16 12 8 4 0 -4 -8 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 Frequency (GHz)

VGA-P014458-QGG_UnitedMonolithicSemiconductors.pdf

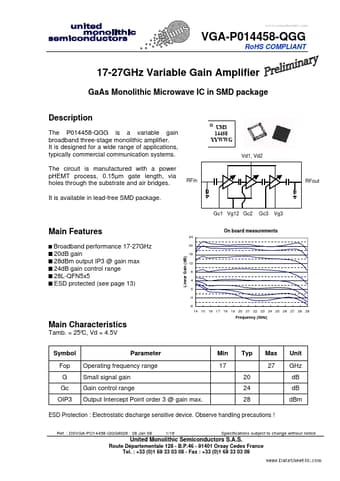

Preview of VGA-P014458-QGG PDF
VGA-P014458-QGG Datasheet Preview Page 2 VGA-P014458-QGG Datasheet Preview Page 3

Datasheet Details

Part number:

VGA-P014458-QGG

Manufacturer:

United Monolithic Semiconductors

File Size:

756.81 KB

Description:

17-27ghz variable gain amplifier.
