CHP3010A98F Datasheet - United Monolithic Semiconductors

CHP3010A98F GaAs Monolithic Microwave

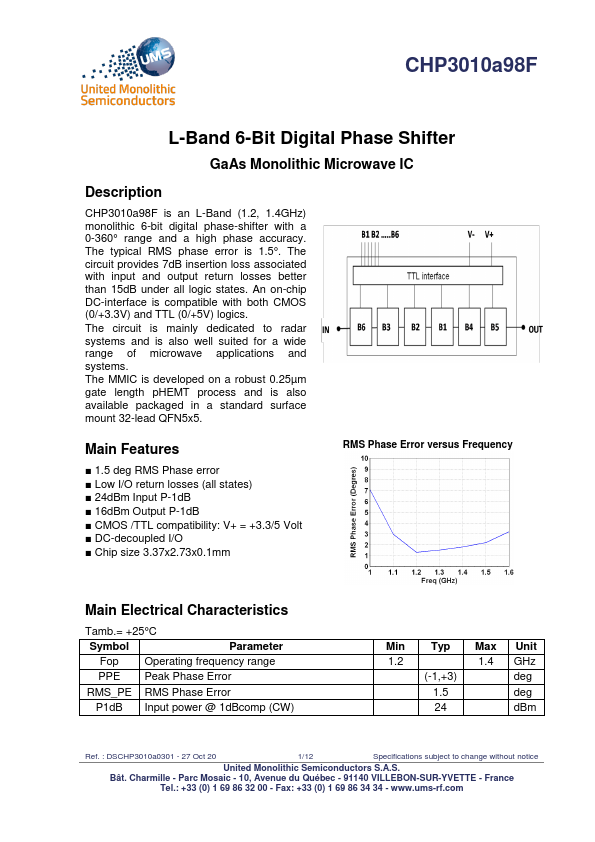

CHP3010a98F is an L-Band (1.2, 1.4GHz) monolithic 6-bit digital phase-shifter with a 0-360° range and a high phase accuracy. The typical RMS phase error is 1.5°. The circuit provides 7dB insertion loss associated with input and output return losses better than 15dB under all logic states. An on-chip.

CHP3010A98F Features

* 1.5 deg RMS Phase error

* Low I/O return losses (all states)

* 24dBm Input P-1dB

* 16dBm Output P-1dB

* CMOS /TTL compatibility: V+ = +3.3/5 Volt

* DC-decoupled I/O

* Chip size 3.37x2.73x0.1mm RMS Phase Error versus Frequency Main Electrical Characteristics Tamb.= +2

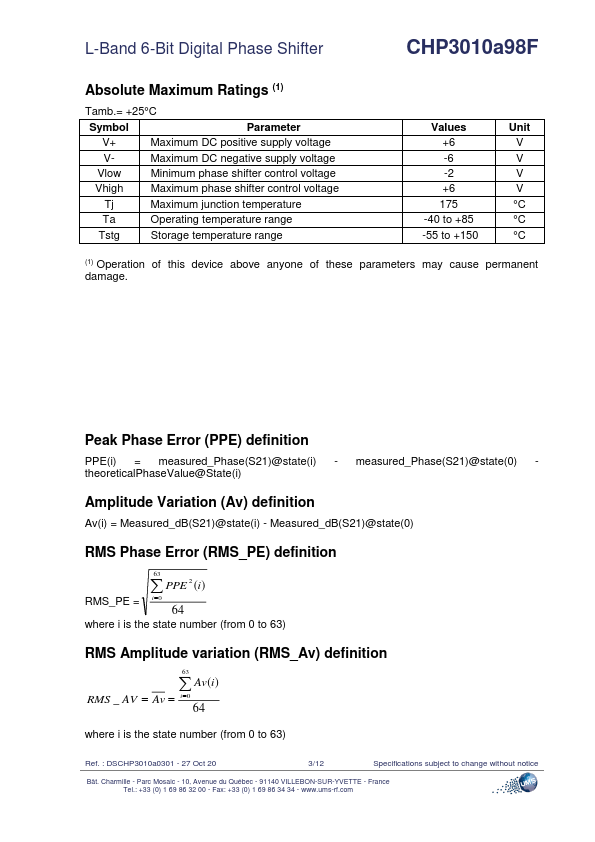

CHP3010A98F-UnitedMonolithicSemiconductors.pdf

CHP3010A98F Datasheet Preview — Preview of CHP3010A98F PDF

Datasheet Details

Part number:

CHP3010A98F

Manufacturer:

United Monolithic Semiconductors

File Size:

1.02 MB

Description:

Gaas monolithic microwave.
