CHP6013-SRF

L-band Phase Shifter

United Monolithic Semiconductors

Image	Manufacturer	B2B MPN	Description	Distributor	Stock	Quantity	Price	Buy Now
	United Monolithic Semiconductors	CHP6013-SRF	PHASE SHIFTER	Richardson RFPD	0	52 units	$312.65	🛒 Buy Now

Download Datasheet (358.20 KB)

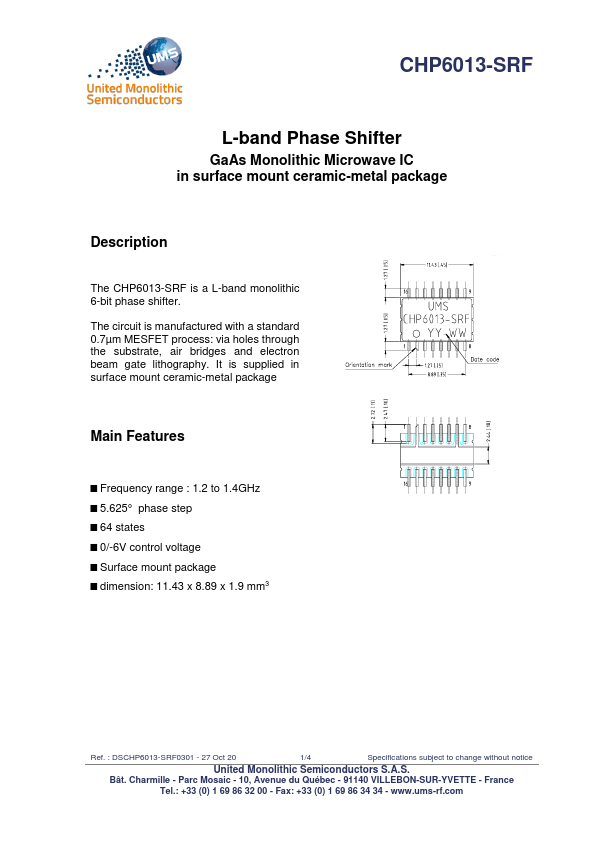

CHP6013-SRF Datasheet Preview — Preview of CHP6013-SRF Datasheet

Datasheet Details

Part number:

CHP6013-SRF

Manufacturer:

United Monolithic Semiconductors

File Size:

358.20 KB

Description:

L-band phase shifter.
CHP6013-SRF L-band Phase Shifter GaAs Monolithic Microwave IC in surface mount ceramic-metal package.
The CHP6013-SRF is a L-band monolithic 6-bit phase shifter. The circuit is manufactured with a stand.

✔ CHP6013-SRF Features

Frequency range : 1.2 to 1.4GHz
5.625° phase step
64 states
0/-6V control voltage
Surface mount package
dimension: 11.43 x 8.89 x 1.9 mm3 Ref. : DSCHP6013-SR
