CHR3693 Datasheet - United Monolithic Semiconductors

21-26.5GHz Integrated Down converter

CHR3693 Features

* Broadband performance 21-26.5GHz Conversion Gain (Inf. & Sup. Mode) 24 22 Conversion Gain (dB) 20 18 16 14 12 10 20.5

* 18dB gain

* -7dBm input IP3

* 18dB image rejection

* DC power consumption: 4V, 160mA

* Chip size: 2,45 x 2,45 x 0,1mm F_IF=2GHz 21.5 22.5 23.5 F_IF=3.

CHR3693 General Description

The CHR3693 is a multifunction chip, which integrates a balanced cold FET mixer, a time two multiplier, and a RF self biased LNA. It is designed for a wide range of applications, typically commercial communication systems. The backside of the chip is both RF and DC grounded. This helps to simplify t.

CHR3693 Datasheet (288.16 KB)

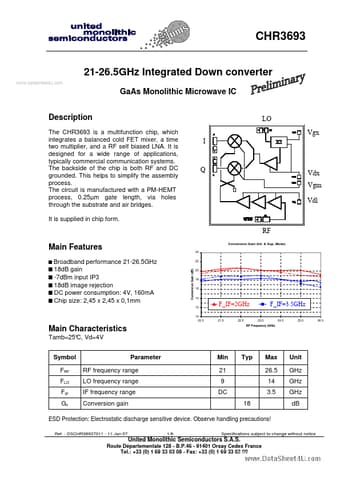

CHR3693 Datasheet Preview — Preview of CHR3693 PDF

Datasheet Details

Part number:

CHR3693

Manufacturer:

United Monolithic Semiconductors

File Size:

288.16 KB

Description:

21-26.5ghz integrated down converter.
