CHX2090RBF - 12-24GHz Frequency Multiplier

Datasheet Summary

Description

The monolithic microwave IC (MMIC) in the package is a cascadable by 2 frequency multiplier.

It is designed for a wide range of applications, from military to commercial communication systems.

Features

  • Broadband performances : 11-13GHz (f0).
  • Output power 13dBm (at 2f0) for Pin = 12dBm (at f0).
  • Rejection better than 15dBc (related to Pout at 2f0).
  • SMT leadless package 3.
  • Dimensions: 5.08 x 5.08 x 0.97 mm SMT Package Dimensions Please note that PIN 1 is located in the lower left corner of the package (front-side view) for all SMD-type packages from United Monolithic Semiconductors. It is indicated by a triangle on the package lid. Starting with PIN 1 the other pads ar.

📥 Download Datasheet

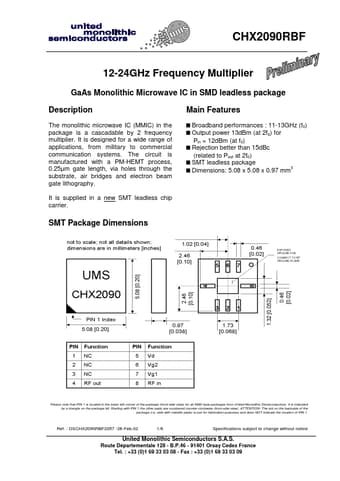

Datasheet preview – CHX2090RBF

Datasheet Details

Part number CHX2090RBF
Manufacturer United Monolithic Semiconductors
File Size 151.29 KB
Description 12-24GHz Frequency Multiplier
Datasheet download datasheet CHX2090RBF Datasheet
Additional preview pages of the CHX2090RBF datasheet.

📁 Similar Datasheet

  • CHX912 - micro-power Omnipolar Hall effect switch (Cosemitech)
  • CHX912L - micro-power Omnipolar Hall effect switch (Cosemitech)
Other Datasheets by United Monolithic Semiconductors

Full PDF Text Transcription

Click to expand full text
CHX2090RBF 12-24GHz Frequency Multiplier GaAs Monolithic Microwave IC in SMD leadless package Description The monolithic microwave IC (MMIC) in the package is a cascadable by 2 frequency multiplier. It is designed for a wide range of applications, from military to commercial communication systems. The circuit is manufactured with a PM-HEMT process, 0.25µm gate length, via holes through the substrate, air bridges and electron beam gate lithography. It is supplied in a new SMT leadless chip carrier. Main Features ■ Broadband performances : 11-13GHz (f0) ■ Output power 13dBm (at 2f0) for Pin = 12dBm (at f0) ■ Rejection better than 15dBc (related to Pout at 2f0) ■ SMT leadless package 3 ■ Dimensions: 5.08 x 5.08 x 0.
