DBES105A Datasheet, Diode, United Monolithic Semiconductors

DBES105A Features

  • Diode
  • High cut-off frequencies : 3THz
  • High breakdown voltage : < -5V @ 20µA
  • Good ideality factor : 1.2
  • Low parasitic inductances
  • Low cost tec

PDF File Details

Part number:

DBES105A

Manufacturer:

United Monolithic Semiconductors

File Size:

58.66kb

Download:

📄 Datasheet

Description:

Flip-chip dual diode. The DBES105a is a dual Schottky diode based on a low cost 1µm stepper process including a bump technology. The parasitic inductances

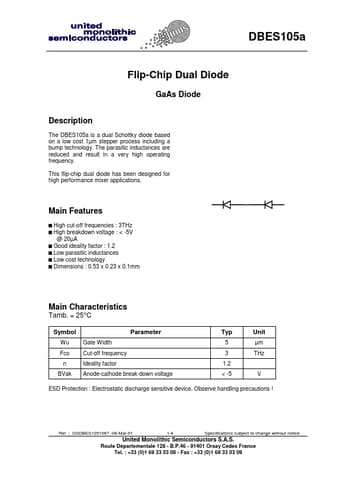

Datasheet Preview: DBES105A 📥 Download PDF (58.66kb)
Page 2 of DBES105A Page 3 of DBES105A

DBES105A Application

  • Applications Main Features
  • High cut-off frequencies : 3THz
  • High breakdown voltage : < -5V @ 20µA
  • Good ideality facto
