DBE0640, Variable-Gain Ultra-Wideband Voltage Amplifier

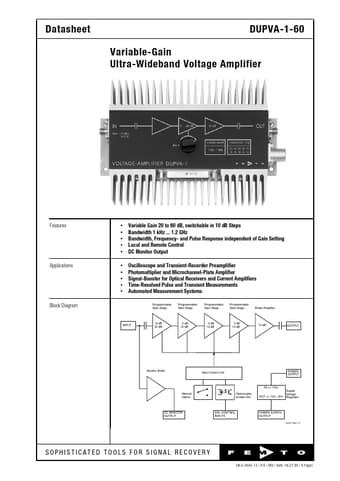

Datasheet DUPVA-1-60 Variable-Gain Ultra-Wideband Voltage Amplifier .

datasheet Preview Page 1 from Datasheet4u.com

DBE0640_ETC.pdf

DBE0640 Datasheet Preview — Preview of DBE0640 PDF

Datasheet Details

Part number:

DBE0640

Manufacturer:

ETC

File Size:

225.17 KB

Description:

Variable-Gain Ultra-Wideband Voltage Amplifier

Features

* é é é é é é é é é é Variable Gain 20 to 60 dB, switchable in 10 dB Steps Bandwidth 1 kHz 1.2 GHz Bandwidth, Frequency- and Pulse Response independent of Gain Setting Local and Remote Control DC Monitor Output Oscilloscope and Transient-Recorder Preamplifier Photomultiplier and Microchannel-Plate

Applications

* Block Diagram INPUT 10 dB 20 dB 0 dB 10 dB 0 dB 10 dB 0 dB 10 dB 10 dB OUTPUT Monitor Buffer Gain Control Unit POWER SUPPLY IN (+/-15V) Manual Switch Optocoupler Isolate Unit OUT (+/-12V, +5V) Supply Voltage Regulator DC MONITOR OUTPUT DIG. CONTROL INPUTS POWER SUPPLY OUTPUT BS01-0640
