UJ4C075023B7S Datasheet - UnitedSiC

750V SiC Cascode JFET

UJ4C075023B7S Features

* w On-resistance RDS(on): 23mW (typ) w Operating temperature: 175°C (max) w Excellent reverse recovery: Qrr = 80nC w Low body diode VFSD: 1.23V w Low gate charge: QG = 37.8nC w Threshold voltage VG(th): 4.8V (typ) allowing 0 to 15V drive w Low intrinsic capacitance w ESD protected: HBM class 2 and CD

UJ4C075023B7S General Description

The UJ4C075023B7S is a 750V, 23mW G4 SiC FET. It is based on a unique ‘cascode’ circuit configuration, in which a normally-on SiC JFET is co-packaged with a Si MOSFET to produce a normally-off SiC FET device. The device’s standard gate-drive characteristics allows for a true “drop-in replacement” to.

UJ4C075023B7S Datasheet (0.98 MB)

Preview of UJ4C075023B7S PDF

Datasheet Details

Part number:

UJ4C075023B7S

Manufacturer:

UnitedSiC

File Size:

0.98 MB

Description:

750v sic cascode jfet.
DATASHEET UJ4C075023B7S Tab 1 7 G (1) KS (2) D (Tab) S (3-7) Part Number UJ4C075023B7S Package D2PAK-7L Marking UJ4C075023B7S Silicon Carbide .

📁 Related Datasheet

UJ4C075023K3S SiC Cascode JFET (UnitedSiC)

UJ4C075023K4S SiC Cascode JFET (UnitedSiC)

UJ4C075023L8S Silicon Carbide Cascode JFET (UnitedSiC)

UJ4C075018K3S SiC Cascode JFET (UnitedSiC)

UJ4C075018K4S SiC Cascode JFET (UnitedSiC)

UJ4C075018K4S 750V SiC Cascode JFET (onsemi)

UJ4C075033B7S 750V SiC Cascode JFET (Qorvo)

UJ4C075033K3S SiC FET (UnitedSiC)

UJ4C075033K4S SiC FET (UnitedSiC)

UJ4C075033L8S SiC Cascode JFET (Qorvo)

TAGS

UJ4C075023B7S 750V SiC Cascode JFET UnitedSiC

Image Gallery

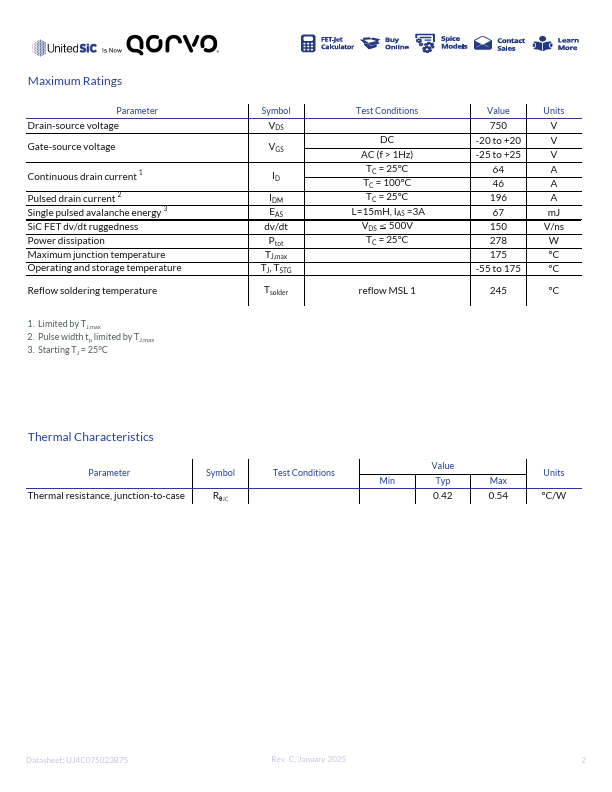

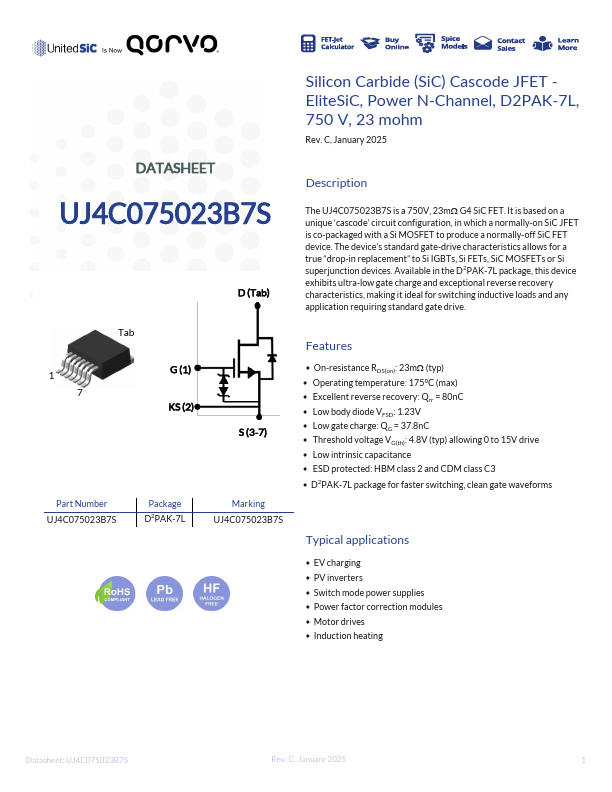

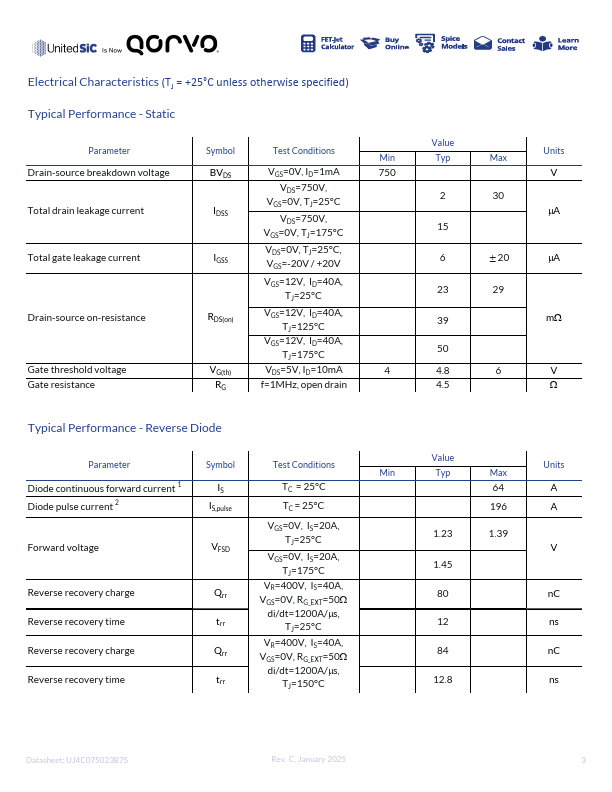

UJ4C075023B7S Datasheet Preview Page 2 UJ4C075023B7S Datasheet Preview Page 3
