UCC1808-2 - Low Power Current Mode Push-Pull PWM

Product Overview

Unitrode

📥 Download Datasheet

UCC1808-2 Low Power Current Mode Push-Pull PWM by Unitrode - Datasheet Preview — Datasheet preview – UCC1808-2

Datasheet Details

Part number	UCC1808-2
Manufacturer	Unitrode
File Size	186.35 KB
Description	Low Power Current Mode Push-Pull PWM
Datasheet	UCC1808-2 Datasheet
Note	This datasheet PDF includes multiple part numbers: UCC1808-2, UCC1808-1. Please refer to the document for exact specifications by model.

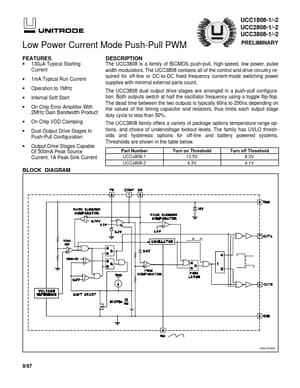

Additional preview pages of the UCC1808-2 datasheet.

Product details

Description

The UCC3808 is a family of BiCMOS push-pull, high-speed, low power, pulse width modulators.

Features

130µA Typical Starting Current.
1mA Typical Run Current.
Operation to 1MHz.
Internal Soft Start.
On Chip Error Amplifier With 2MHz Gain Bandwidth Product.
On Chip VDD Clamping.
Dual Output Drive Stages In Push-Pull Configuration.
Output Drive Stages Capable Of 500mA Peak Source Current, 1A Peak Sink Current BLOCK.
