UCC19411

Low Power Synchronous Boost Converter

Unitrode

UCC19411 Features

* 1V Input Voltage Operation Start-up Guaranteed under FULL Load on Main Output, and Operation Down to 0.5V

* 200mW Output Power at Battery Voltages as low as 0.8V

* Secondary 7V Supply from a Single Inductor

* Output Fully Disconnected in Shutdown

* Adaptive

UCC19411 General Description

The UCC39411 family of low input voltage, single inductor boost converters is optimized to operate from a single or dual alkaline cell, and steps up to a 3.3V, 5V, or adjustable output at 200mW. The UCC39411 family also provides an auxiliary 7V output, primarily for the gate drive supply, which can .

UCC19411 Datasheet (141.49 KB)

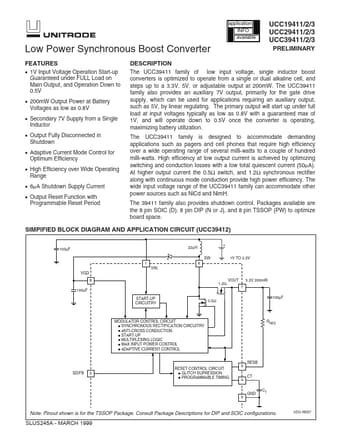

UCC19411 Datasheet Preview — Preview of UCC19411 PDF

Datasheet Details

Part number:

UCC19411

Manufacturer:

Unitrode

File Size:

141.49 KB

Description:

Low power synchronous boost converter.
