UCC19412, UCC19411 - Low Power Synchronous Boost Converter

Name: UCC19412
SKU: UCC19412-1304136

Unitrode

📥 Download Datasheet

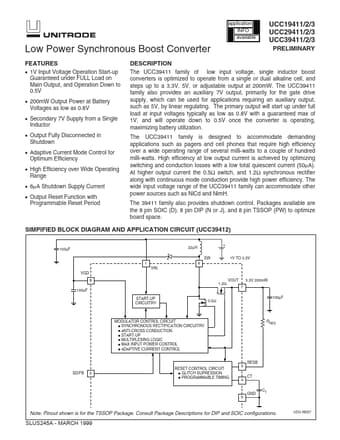

UCC19412 Datasheet Preview — This datasheet PDF includes multiple part numbers: UCC19412, UCC19411. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	UCC19412, UCC19411
Manufacturer	Unitrode
File Size	141.49 KB
Description	Low Power Synchronous Boost Converter
Datasheet	UCC19411-Unitrode.pdf
Note	This datasheet PDF includes multiple part numbers: UCC19412, UCC19411. Please refer to the document for exact specifications by model.

UCC19412 Product details

Description

The UCC39411 family of low input voltage, single inductor boost converters is optimized to operate from a single or dual alkaline cell, and steps up to a 3.3V, 5V, or adjustable output at 200mW.

Features

1V Input Voltage Operation Start-up Guaranteed under FULL Load on Main Output, and Operation Down to 0.5V.
200mW Output Power at Battery Voltages as low as 0.8V.
Secondary 7V Supply from a Single Inductor.
Output Fully Disconnected in Shutdown.
Adaptive Current Mode Control for Optimum Efficiency.
High Efficiency over Wide Operating Range.
6µA Shutdown Supply Current.
Output Reset Function with Programmable Reset Period DE.
