UCC3581 Datasheet, PWM, Unitrode

UCC3581 Features

  • Pwm
  • Low 85µA Startup Current BLOCK DIAGRAM
  • Low 300µA Operating Current
  • Automatically Disabled Startup Preregulator
  • Programmable Minimum Duty Cycl

PDF File Details

Part number:

UCC3581

Manufacturer:

Unitrode

File Size:

842.39kb

Download:

📄 Datasheet

Description:

Micropower voltage mode pwm. The UCC3581 voltage mode pulse width modulator is designed to control low power isolated DC - DC converters in applications such as S

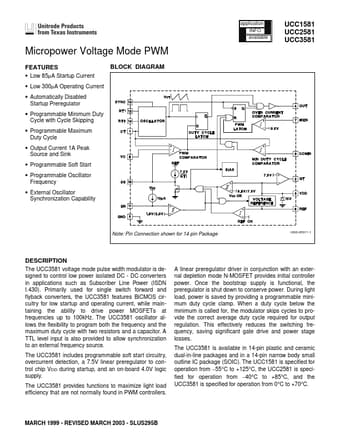

Datasheet Preview: UCC3581 📥 Download PDF (842.39kb)
Page 2 of UCC3581 Page 3 of UCC3581

UCC3581 Application

  • Applications such as Subscriber Line Power (ISDN I.430). Primarily used for single switch forward and flyback converters, the UCC3581 features BiCMO
