UCC3580-3 - Single Ended Active Clamp/Reset PWM

Product Overview

Texas Instruments

Datasheet Details

Part number	UCC3580-3
Manufacturer	Texas Instruments
File Size	0.96 MB
Description	Single Ended Active Clamp/Reset PWM
Datasheet	UCC3580-3 Datasheet
Note	This datasheet PDF includes multiple part numbers: UCC3580-3, UCC2580-1. Please refer to the document for exact specifications by model.

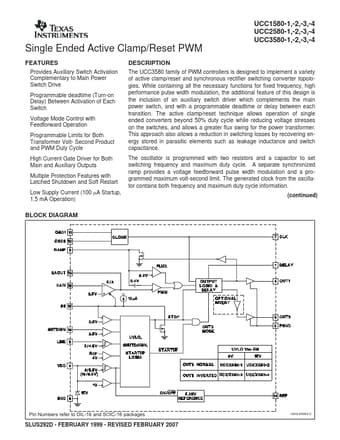

Additional preview pages of the UCC3580-3 datasheet.

Product details

Description

The UCC3580 family of PWM controllers is designed to implement a variety of active clamp/reset and synchronous rectifier switching converter topologies.

Features

Provides Auxiliary Switch Activation Complementary to Main Power Switch Drive Programmable deadtime (Turn-on Delay) Between Activation of Each Switch Voltage Mode Control with Feedforward Operation Programmable Limits for Both Transformer Volt- Second Product and PWM Duty Cycle High Current Gate Driver for Both Main and Auxiliary Outputs Multiple Protection Features with Latched Shutdown and Soft Restart Low Supply Current (100 mA Startup, 1.5 mA Operation).
