MIM-0KM1AKL Datasheet - Unity Opto Technology

MIM-0KM1AKL - INFRARED RECEIVER MODULE

The MIM-0KM1AKL is miniaturized infrared receivers for remote control and other appplications requiring improved ambient light rejection.

The separate PIN diode and preamplifier IC are assembled on a single leadframe.

The epoxy package contains a special IR filter.

This module has excellent performa

MIM-0KM1AKL Features

* Photo detector and preamplifier in one package Internal filter for PCM frequency High immunity against ambient light Improved shielding against electric field disturbance 2.4-Volt supply voltage; low power consumption TTL and CMOS compatibility MIM-0KM1xKL Series Models MIM-0KM1AKL 37.9KHz MIM-0KM1

MIM-0KM1AKL-UnityOptoTechnology.pdf

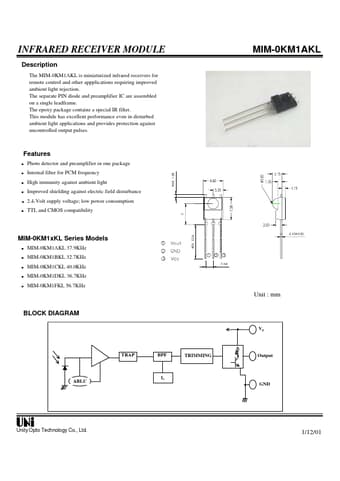

Preview of MIM-0KM1AKL PDF
MIM-0KM1AKL Datasheet Preview Page 2 MIM-0KM1AKL Datasheet Preview Page 3

Datasheet Details

Part number:

MIM-0KM1AKL

Manufacturer:

Unity Opto Technology

File Size:

53.53 KB

Description:

Infrared receiver module.
