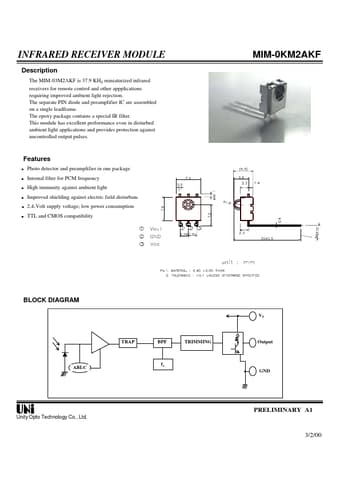

MIM-0KM2AKF INFRARED RECEIVER MODULE

The MIM-03M2AKF is 37.9 KHZ miniaturized infrared receivers for remote control and other appplications requiring improved ambient light rejection. The separate PIN diode and preamplifier IC are assembled on a single leadframe. The epoxy package contains a special IR filter. This module has excellent.

MIM-0KM2AKF Features

* Photo detector and preamplifier in one package Internal filter for PCM frequency High immunity against ambient light Improved shielding against electric field disturbance 2.4-Volt supply voltage; low power consumption TTL and CMOS compatibility BLOCK DIAGRAM VS TRAP BPF TRIMMING Output ABLC f
