2SK1417

N-Channel MOSFET

2SK1417 Features

* Halogen-free According to IEC 61249-2-21 Definition

* Surface Mount

* Available in Tape and Reel

* Dynamic dV/dt Rating

* Logic-Level Gate Drive

* Fast Switching

* Compliant to RoHS Directive 2002/95/EC D GD S Top View G S N-Channel MOSFET

2SK1417 Datasheet (533.81 KB)

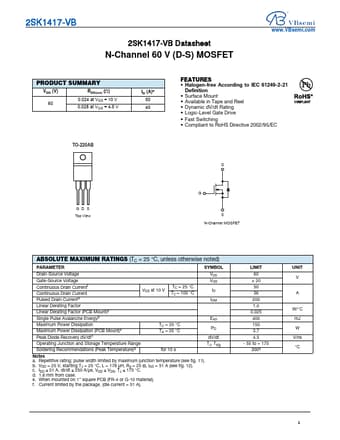

Preview of 2SK1417 PDF

Datasheet Details

Part number:

2SK1417

Manufacturer:

VBsemi

File Size:

533.81 KB

Description:

N-channel mosfet.
2SK1417-VB 2SK1417-VB Datasheet N-Channel 60 V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) 60 RDS(on) () 0.024 at VGS = 10 V 0.028 at VG.
