2SK1534 - N-Channel 900V Power MOSFET

2SK1534 Description

2SK1534-VB www.VBsemi.com 2SK1534-VB Datasheet N-Channel 900V (D-S) Super Junction Power MOSFET PRODUCT SUMMARY VDS (V) RDS(on) (Ω) Qg (Max.) (nC).

2SK1534 Features

* Dynamic dV/dt Rating
* Repetitive Avalanche Rated
* Isolated Central Mounting Hole
* Fast Switching
* Ease of Paralleling
* Simple Drive Requirements
* Compliant to RoHS Directive 2002/95/EC Available RoHS
* COMPLIANT TO-220AB D G GD S

📥 Download Datasheet

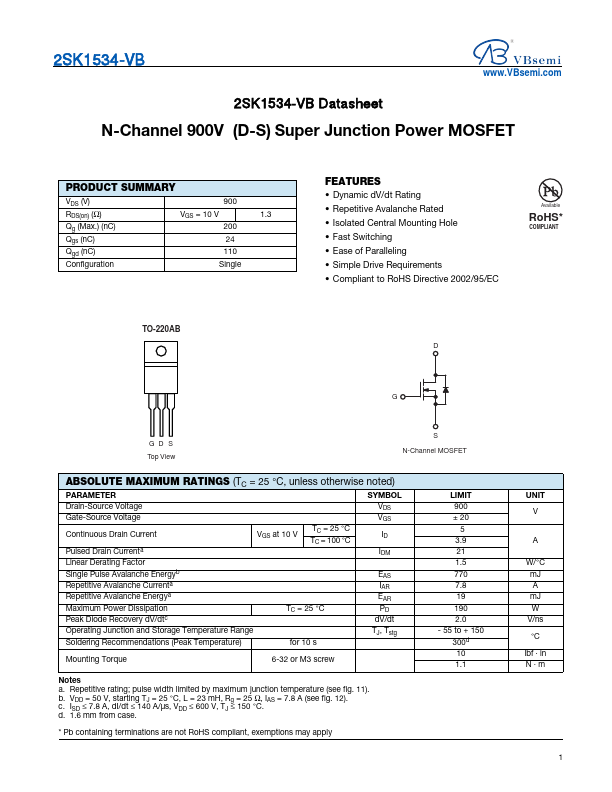

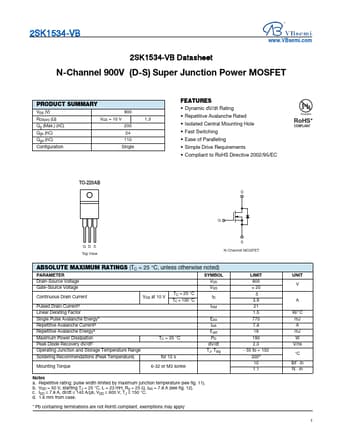

Preview of 2SK1534 PDF

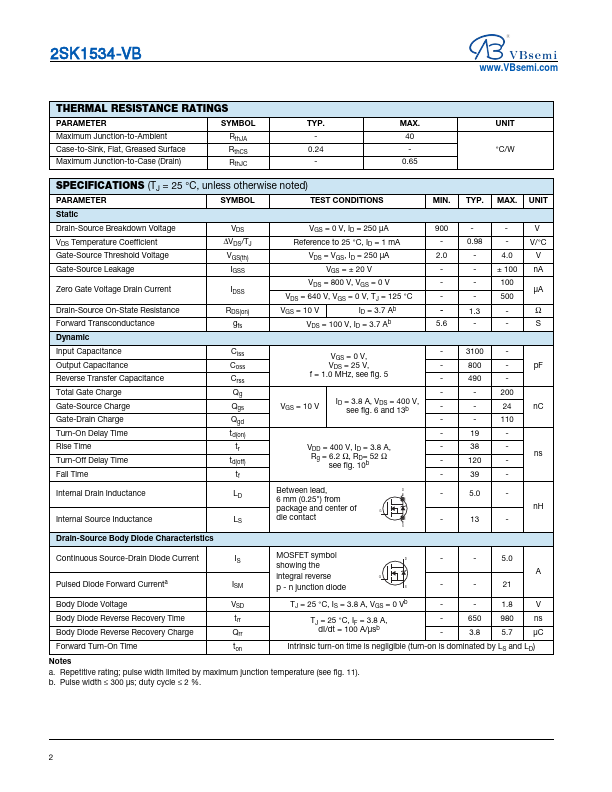

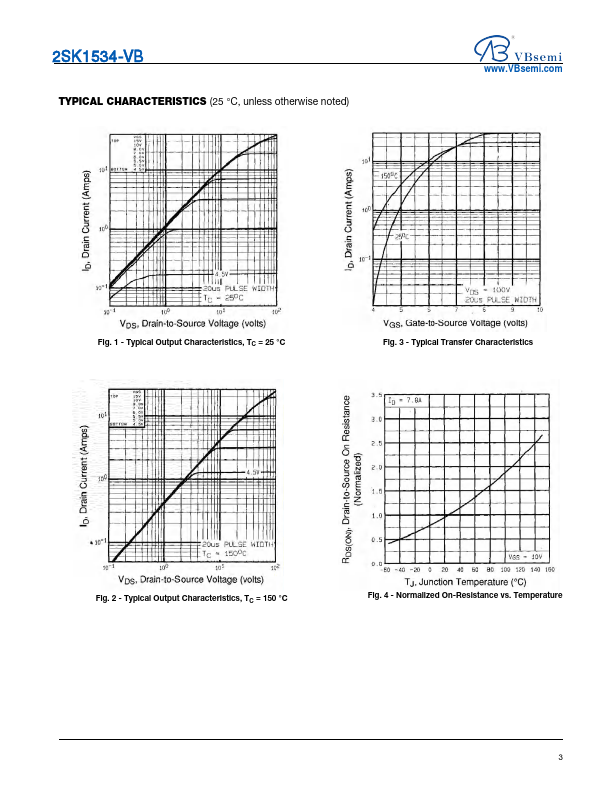

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SK1534
Manufacturer
VBsemi
File Size
428.94 KB
Datasheet
2SK1534-VBsemi.pdf
Description
N-Channel 900V Power MOSFET
