30P06 P-Channel 60V MOSFET

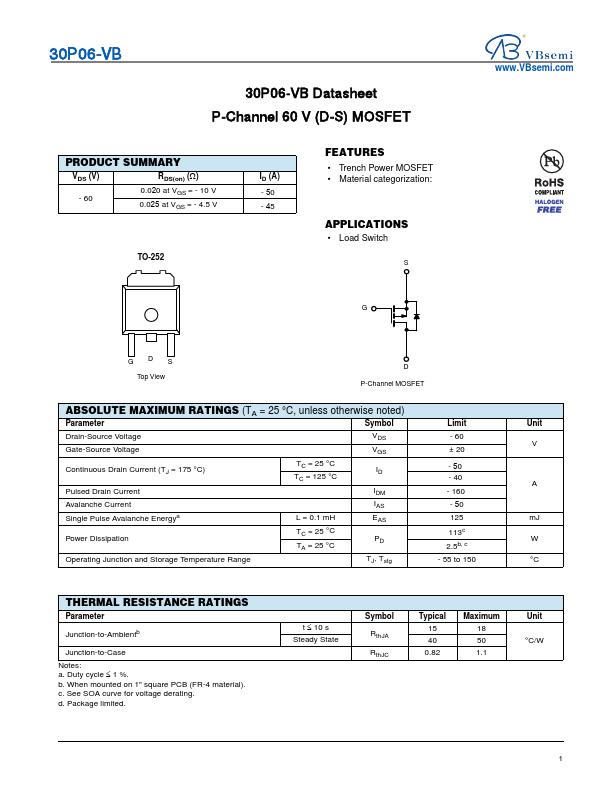

📥 Download Datasheet  Datasheet Preview Page 1

Description

30P06-VB 30P06-VB Datasheet P-Channel 60 V (D-S) MOSFET PRODUCT SUMMARY VDS (V) RDS(on) () 0.020 at VGS = - 10 V - 60 0.025 at VGS = - 4.5 V ID.

📥 Download Datasheet

Preview of 30P06 PDF

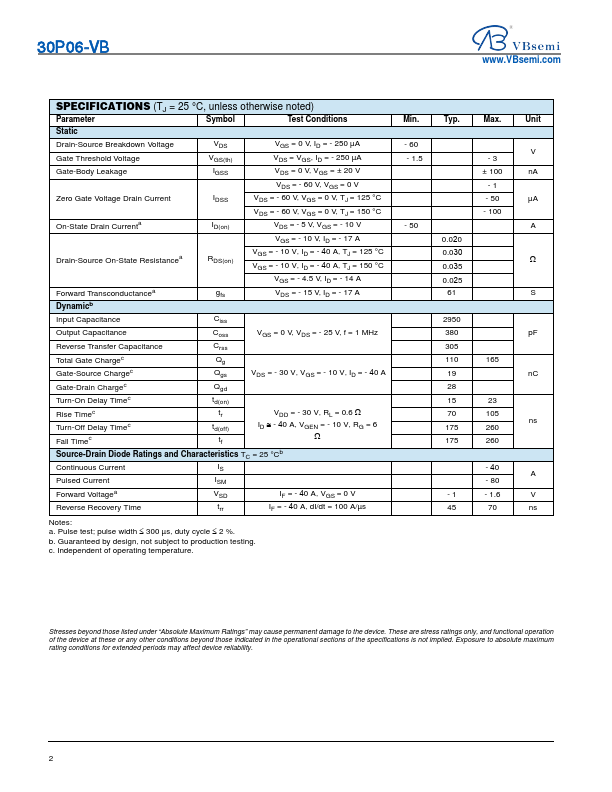

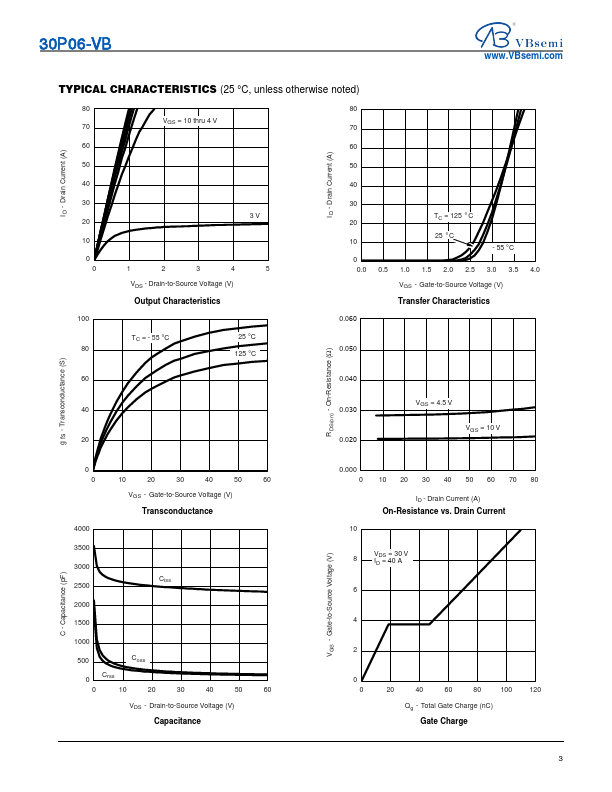

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
30P06
Manufacturer
VBsemi
File Size
211.40 KB
Datasheet
30P06-VBsemi.pdf
Description
P-Channel 60V MOSFET

Features

* Trench Power MOSFET

Applications

* Load Switch S G www. VBsemi. com GDS Top View D P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Limit Unit Drain-Source Voltage Gate-Source Voltage VDS - 60 V VGS ± 20 Continuous Drain Current (TJ = 175 °C) Pulsed Drain Current
