Datasheet Specifications
- Part number
- 9478GM
- Manufacturer
- VBsemi
- File Size
- 219.34 KB
- Datasheet
- 9478GM-VBsemi.pdf
- Description
- N-Channel 60-V MOSFET
Description

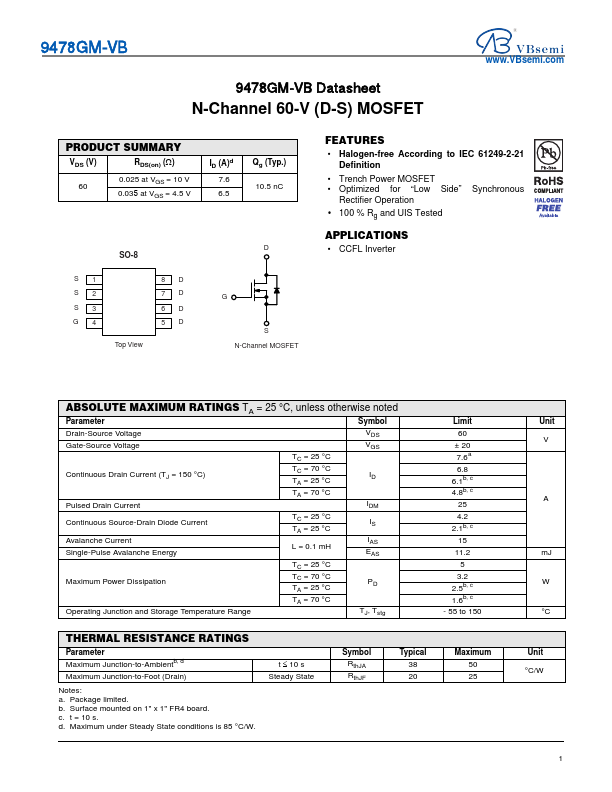

9478GM-VB 9478GM-VB Datasheet N-Channel 60-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 60 0.025 at VGS = 10 V 0.035 at V.
Features
* Halogen-free According to IEC 61249-2-21 DefinitionApplications
* CCFL Inverter ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS TC = 25 °C Continuous Drain Current (TJ = 150 °C) TC = 70 °C TA = 25 °C ID Pulsed Drain Current TA = 70 °C IDM Continuous Source-Drain D9478GM Distributors
