AO4912, Dual N-Channel 30V MOSFET

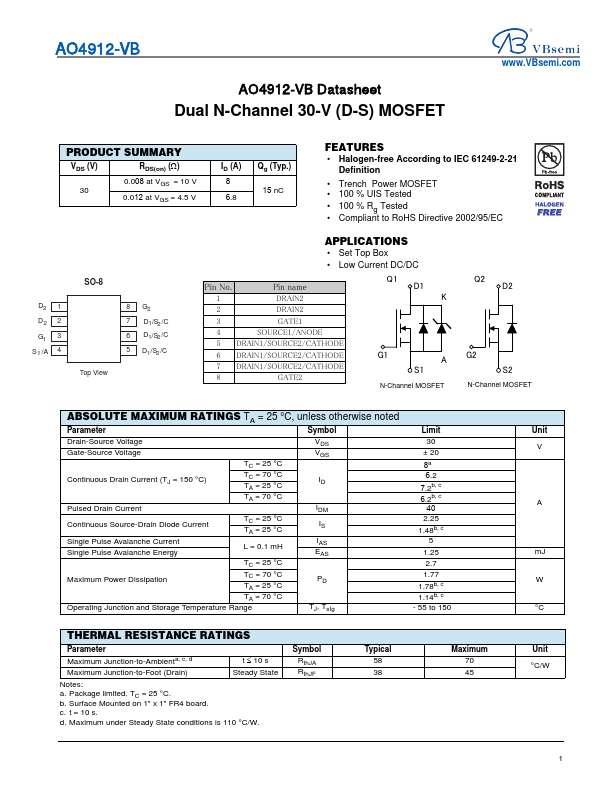

AO4912-VB AO4912-VB Datasheet Dual N-Channel 30-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.008 at VGS = 10 V 30 0.012 a

Features

* Halogen-free According to IEC 61249-2-21 Definition
* Trench Power MOSFET
* 100 % UIS Tested
* 100 % Rg Tested

Applications

* Set Top Box
* Low Current DC/DC ᎋ፸ ᎒ ᎎ፸ ᎈ ᎚፸ N-Channel MOSFET ᎋ፹ ᎎ፹ ᎚፹ N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ
