AO4918
AO4918 is 30V Dual N-Channel MOSFET manufactured by VBsemi.
AO4918-VB
.VBsemi.

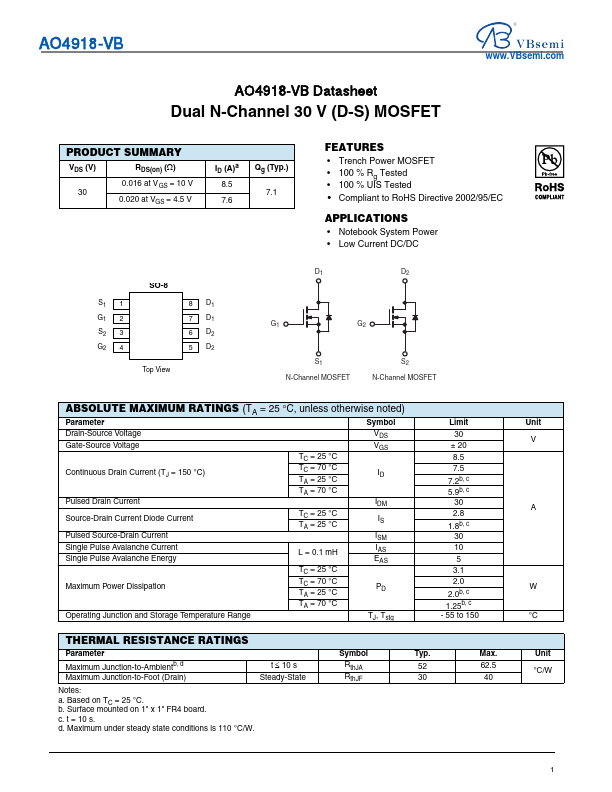

AO4918-VB Datasheet
Dual N-Channel 30 V (D-S) MOSFET
PRODUCT SUMMARY
VDS (V)
RDS(on) ()
0.016 at VGS = 10 V 30
0.020 at VGS = 4.5 V
ID (A)a 8.5 7.6
Qg (Typ.) 7.1
Features
- Trench Power MOSFET
- 100 % Rg Tested
- 100 % UIS Tested
- pliant to RoHS Directive 2002/95/EC
APPLICATIONS
- Notebook System Power
- Low Current DC/DC
S1 1 G1 2 S2 3 G2 4
SO-8 Top View
8 D1 7 D1 6 D2 5 D2
D1
D2
G1
G2
S1 N-Channel MOSFET
S2 N-Channel...
