AO4918 - Dual N-Channel MOSFET

Key Features

  • s N-Channel 1.
  • VDS (V) = 30V.
  • ID = 9.3 A (VGS = 10V).
  • RDS(ON) ＜ 14.5mΩ (VGS = 10V).
  • RDS(ON) ＜ 16mΩ (VGS = 4.5V).
  • VDS (V) = 30V, IF = 3A, VF.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO4918 Dual N-Channel Enhancement Mode Field Effect Transistor Alpha & Omega Semiconductors
AO4918 30V Dual N-Channel MOSFET VBsemi
AO4918A Dual N-Channel Enhancement Mode Field Effect Transistor Alpha & Omega Semiconductors
AO4912 Dual N-Channel Enhancement Mode Field Effect Transistor Alpha & Omega Semiconductors
AO4912 Dual N-Channel 30V MOSFET VBsemi

Other Datasheets by Kexin Semiconductor

Part Number Description
AO4912 Dual N-Channel MOSFET
AO4914 Dual N-Channel MOSFET
AO4900 Dual N-Channel MOSFET
AO4906 Dual N-Channel MOSFET
AO4924 Dual N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

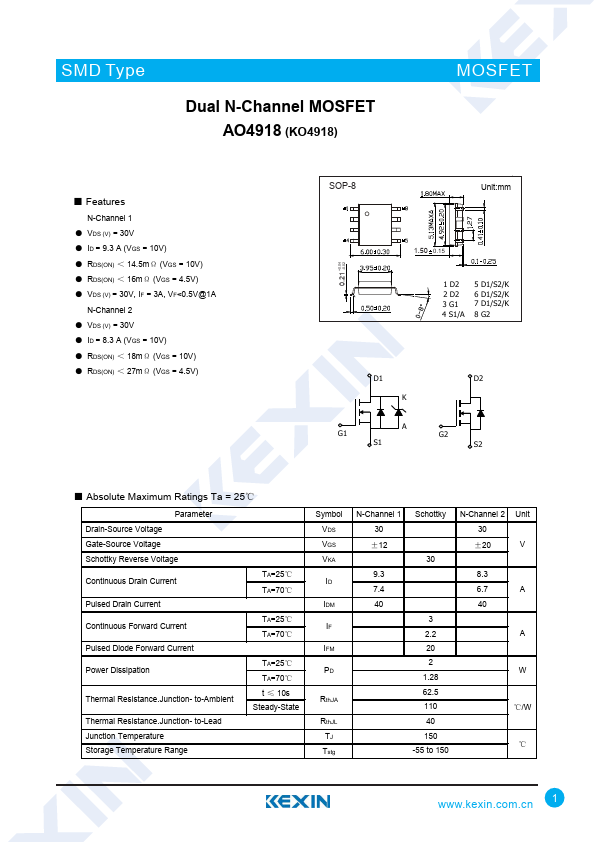

SMD Type Dual N-Channel MOSFET AO4918 (KO4918) MOSFET ■ Features N-Channel 1 ● VDS (V) = 30V ● ID = 9.3 A (VGS = 10V) ● RDS(ON) ＜ 14.5mΩ (VGS = 10V) ● RDS(ON) ＜ 16mΩ (VGS = 4.5V) ● VDS (V) = 30V, IF = 3A, VF<0.5V@1A N-Channel 2 ● VDS (V) = 30V ● ID = 8.3 A (VGS = 10V) ● RDS(ON) ＜ 18mΩ (VGS = 10V) ● RDS(ON) ＜ 27mΩ (VGS = 4.5V) SOP-8 Unit:mm +0.04 0.21 -0.02 1.50 0.15 1 D2 2 D2 3 G1 4 S1/A 5 D1/S2/K 6 D1/S2/K 7 D1/S2/K 8 G2 D1 K A G1 S1 D2 G2 S2 ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Schottky Reverse Voltage Continuous Drain Current Pulsed Drain Current TA=25℃ TA=70℃ Continuous Forward Current Pulsed Diode Forward Current TA=25℃ TA=70℃ Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.
