* TrenchFET® Power MOSFET
* 100 % Rg and UIS Tested APPLICATIONS
* Synchronous Rectification
* Power Supplies D www.VBsemi.com RoHS COMPLIANT G GD S S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Vo
AOD4184
VBsemi
504.75 KB
N-channel mosfet.
AOD4184

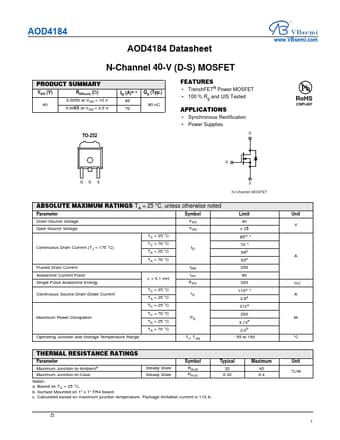

AOD4184 Datasheet
N-Channel 40-V (D-S) MOSFET
PRODUCT SUMMARY
VDS (V)
RDS(on) (Ω)
0.0050 at VGS = 10 V 40
0.0065 at VGS = 4.5 V
ID (A)a.
