AP4523GH - N- and P-Channel 40V MOSFET

AP4523GH Description

AP4523GH-VB AP4523GH-VB Datasheet N- and P-Channel 40 V (D-S) MOSFET PRODUCT SUMMARY N-CHANNEL P-CHANNEL VDS (V) RDS(on) () at VGS = ± 10 V RDS(on.

AP4523GH Features

* Trench Power MOSFET

AP4523GH Applications

* CCFL Inverter www. VBsemi. com TO-252-4L D-PAK D1/D2 Top View Drain Connected to Tab S1 G1 S2 G2 D1/D2 G1 S1 N -channel G2 S2 P-channel ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted) PARAMETER SYMBOL N-CHANNEL P-CHANNEL Drain-Source Voltage VDS 40 - 40 Gate-Sour

📥 Download Datasheet

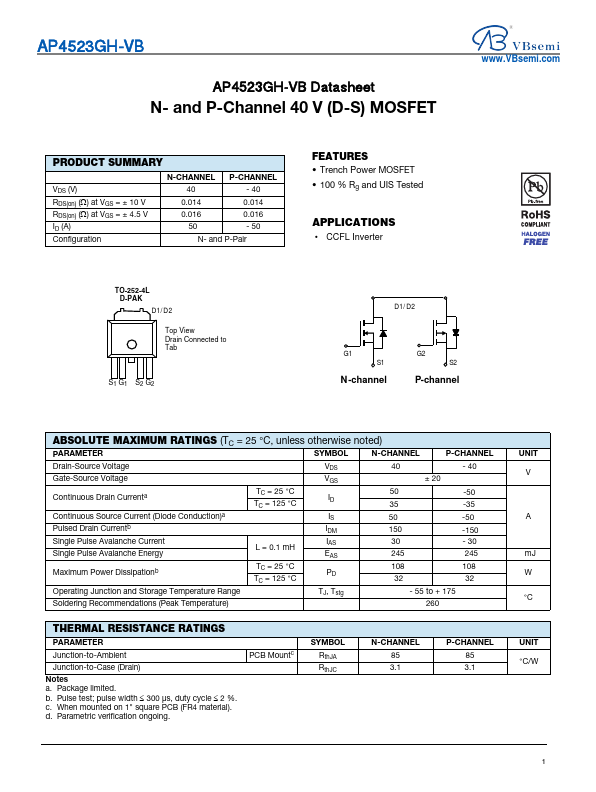

Preview of AP4523GH PDF

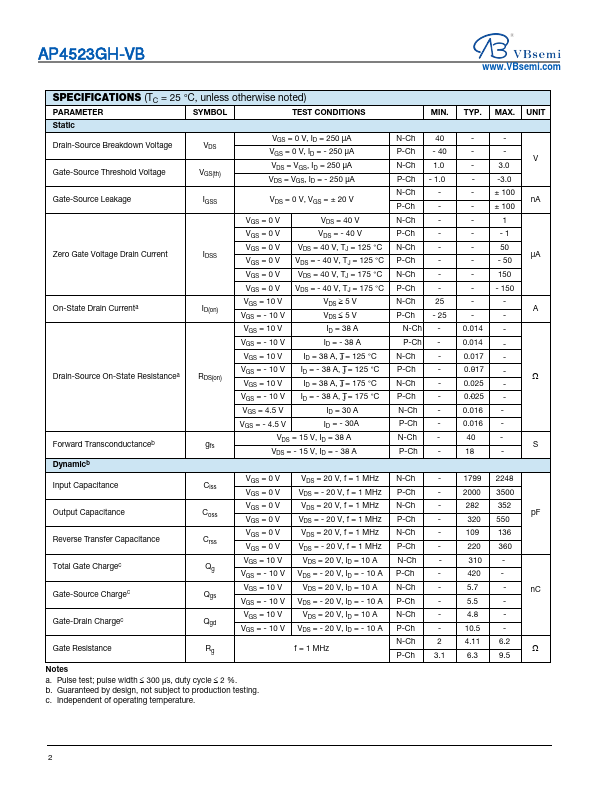

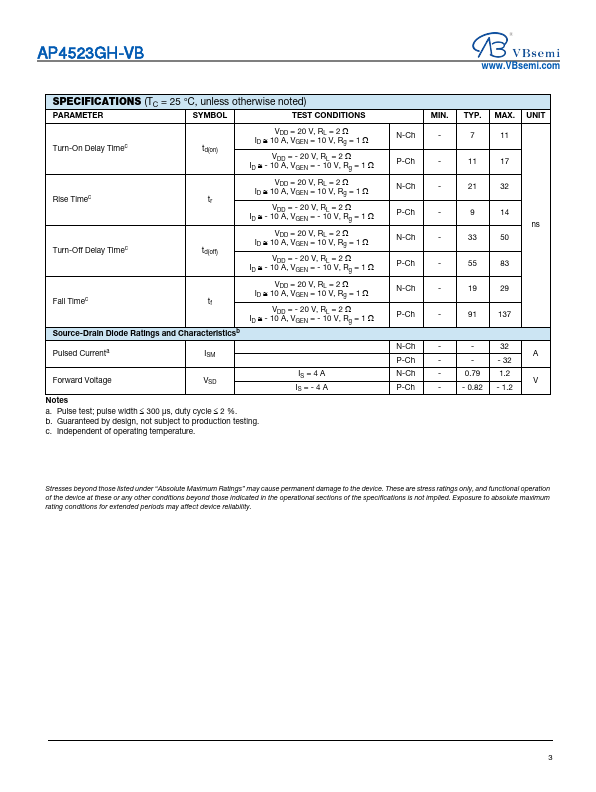

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AP4523GH
Manufacturer
VBsemi
File Size
352.40 KB
Datasheet
AP4523GH-VBsemi.pdf
Description
N- and P-Channel 40V MOSFET
