Part number:
AP75T10GP-HF
Manufacturer:
VBsemi
File Size:
214.90 KB
Description:
N-channel 100v mosfet.

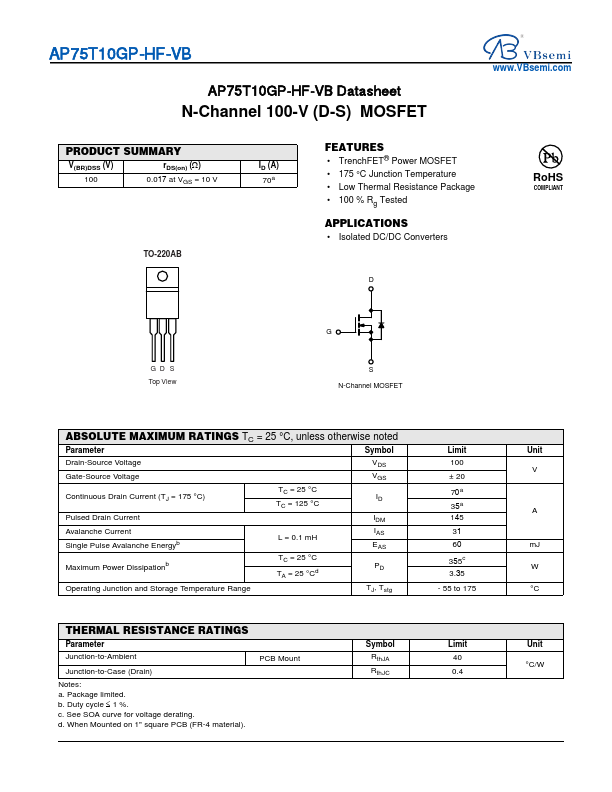

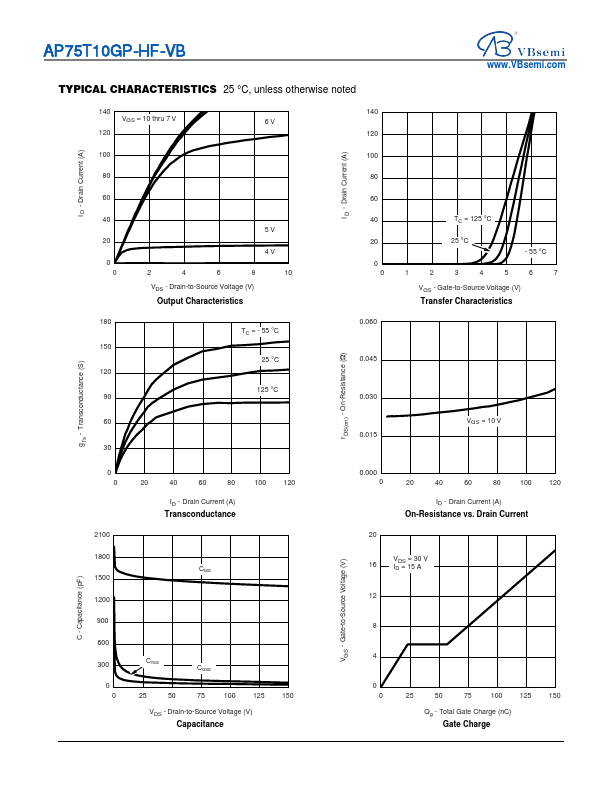

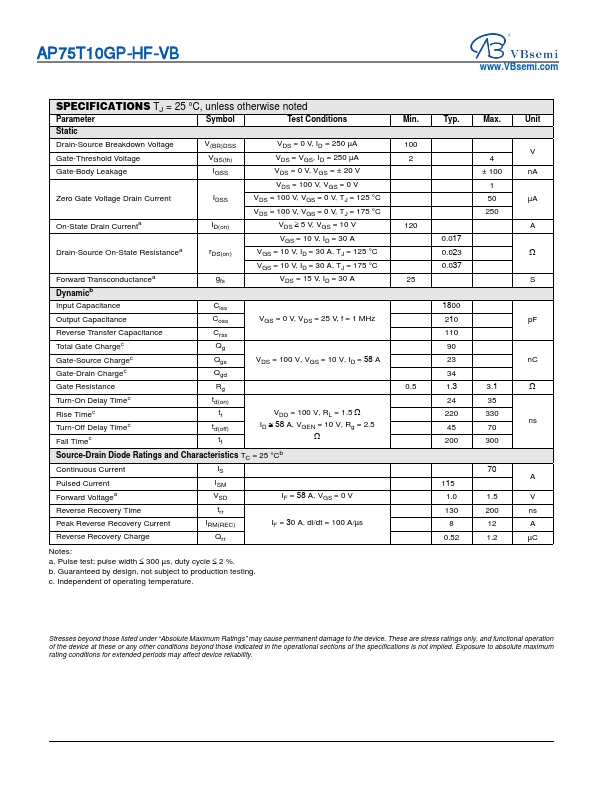

AP75T10GP-HF Datasheet (214.90 KB)
Datasheet Details
AP75T10GP-HF Features
* TrenchFET® Power MOSFET
* 175 °C Junction Temperature
* Low Thermal Resistance Package
* 100 % Rg Tested APPLICATIONS
* Isolated DC/DC Converters D RoHS COMPLIANT GD S Top View G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TC = 25 °C, unless otherwise no
AP75T10GP-HF Datasheet (214.90 KB)
Datasheet Details
AP75T10GP-HF
VBsemi
214.90 KB
N-channel 100v mosfet.
