APM2323AAC-TRL - P-Channel 20V MOSFET

APM2323AAC-TRL Description

APM2323AAC-TRL-VB APM2323AAC-TRL-VB Datasheet P-Channel 20-V (D-S) MOSFET www.VBsemi.com MOSFET PRODUCT SUMMARY VDS (V) RDS(on) () ID (A)a 0.06.

APM2323AAC-TRL Features

* Halogen-free According to IEC 61249-2-21 Definition
* TrenchFET® Power MOSFET
* 100 % Rg Tested

APM2323AAC-TRL Applications

* Load Switch
* PA Switch
* DC/DC Converters G1 S2 3D ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain Current (TJ = 150 °C) TC = 25 °C TC = 70 °C TA = 25 °C ID TA =

📥 Download Datasheet

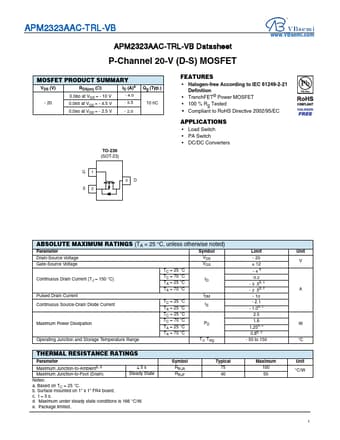

Preview of APM2323AAC-TRL PDF

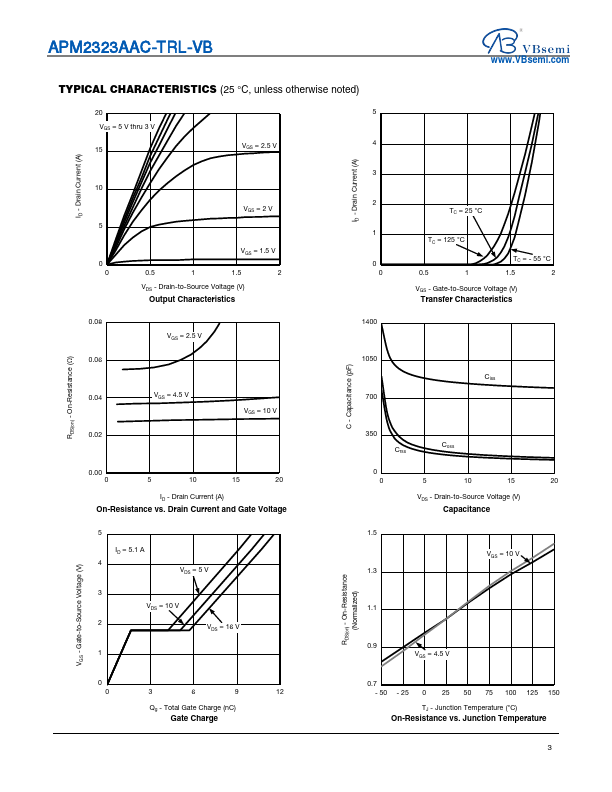

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
APM2323AAC-TRL
Manufacturer
VBsemi
File Size
232.29 KB
Datasheet
APM2323AAC-TRL-VBsemi.pdf
Description
P-Channel 20V MOSFET
