D2810 - N-Channel 80V MOSFET

Datasheet Summary

Features

Trench Power MOSFET.
100 % Rg and UIS Tested.

VBsemi

📥 Download Datasheet

Datasheet Details

Part number	D2810
Manufacturer	VBsemi
File Size	226.18 KB
Description	N-Channel 80V MOSFET
Datasheet	D2810 Datasheet
Additional preview pages of the D2810 datasheet.

📁 Similar Datasheet

D2810CB - Fixed Inductors (TOKO)
D2812D - HIGH RELIABILITY RADIATION TOLERANT LOW POWER DC-DC CONVERTER (International Rectifier)
D2815D - HIGH RELIABILITY RADIATION TOLERANT LOW POWER DC-DC CONVERTER (International Rectifier)
D2801R503R3P - HIGH RELIABILITY RADIATION HARDENED LOW POWER DC-DC CONVERTER (International Rectifier)
D2805D - HIGH RELIABILITY RADIATION TOLERANT LOW POWER DC-DC CONVERTER (International Rectifier)
D2822 - IC Sockets (Harwin)
D2822 - Dual Power Amplifier (Shaoxing Silicore)
D2822 - Dual Power Amplifier (Shaoxing Silicore)
D2822N - Dual Power Amplifier (Shaoxing Silicore Technology)
D288 - 2SD288 (Wing Shing Computer)

Other Datasheets by VBsemi

Full PDF Text Transcription

Click to expand full text

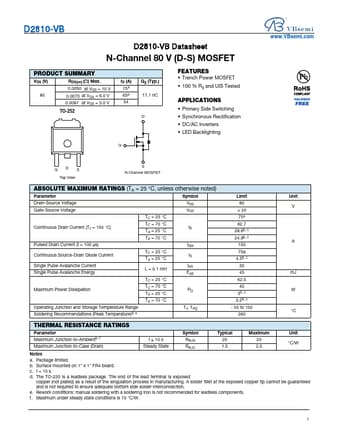

D2810-VB D2810-VB Datasheet N-Channel 80 V (D-S) MOSFET PRODUCT SUMMARY VDS (V) 80 RDS(on) () Max. 0.0050 at VGS = 10 V 0.0070 at VGS = 6.0 V 0.0087 at VGS = 5.0 V TO-252 ID (A) 75a 65a 54 Qg (Typ.) 17.1 nC D FEATURES • Trench Power MOSFET • 100 % Rg and UIS Tested APPLICATIONS • Primary Side Switching • Synchronous Rectification • DC/AC Inverters • LED Backlighting G www.VBsemi.com GDS Top View S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Limit Unit Drain-Source Voltage Gate-Source Voltage VDS 80 V VGS ± 20 TC = 25 °C 75a Continuous Drain Current (TJ = 150 °C) TC = 70 °C TA = 25 °C ID 62.7 28.6b, c Pulsed Drain Current (t = 100 μs) TA = 70 °C 24.
