F7820, N-Channel 200V MOSFET

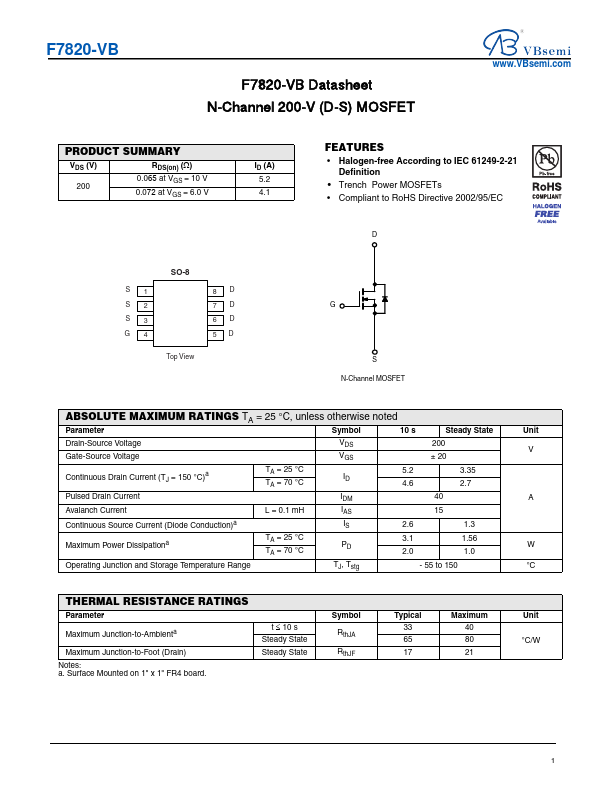

F7820-VB F7820-VB Datasheet N-Channel 200-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 200 0.065 at VGS = 10 V 0.072 at V

Features

* Halogen-free According to IEC 61249-2-21 Definition
* Trench Power MOSFETs
* Compliant to RoHS Directive 2002/95/EC D S1 S2 S3 G4 SO-8 Top View 8D 7D 6D 5D G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol 10 s Steady
