* Halogen-free According to IEC 61249-2-21 Available
* Trench Power MOSFET APPLICATIONS

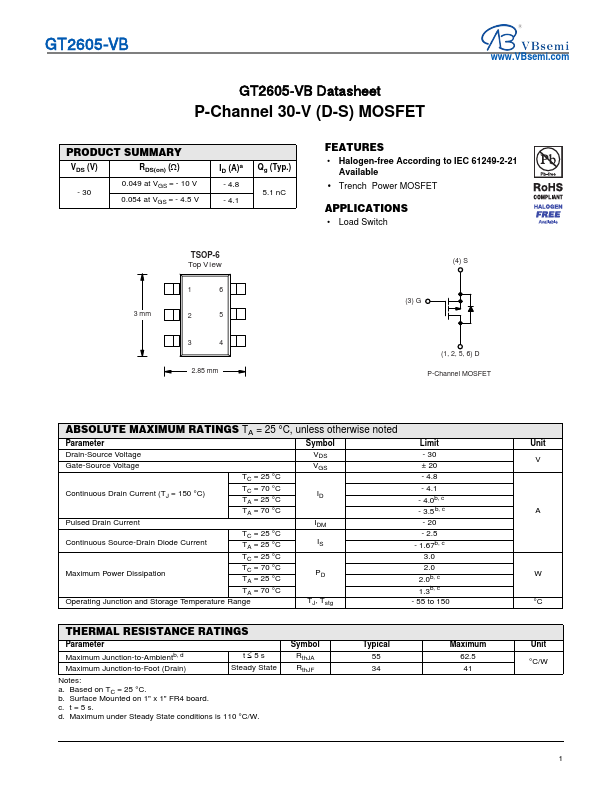

* Load Switch 3 mm TSOP-6 Top V iew 1 6 2 5 3 4 2.85 mm (4) S (3) G (1, 2, 5, 6) D P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbo
GT2605
VBsemi
220.65 KB
P-channel 30v mosfet.

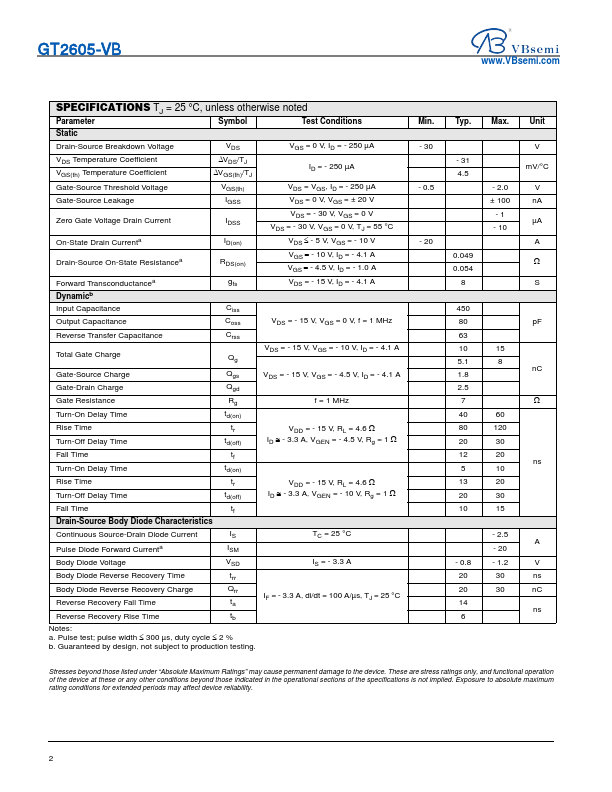

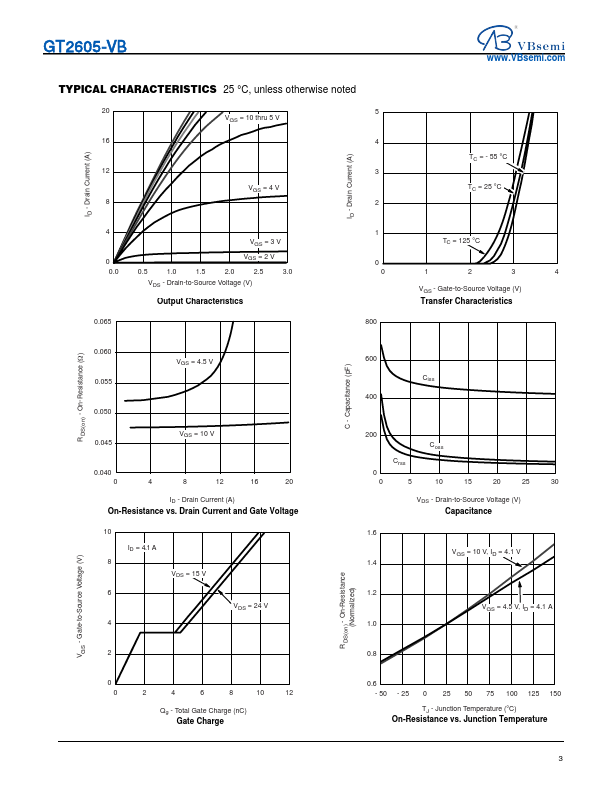

GT2605-VB GT2605-VB Datasheet P-Channel 30-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.049 at VGS = - 10 V - 30 0.054 at.
