K3525-01MR N-Channel 650V Power MOSFET

K3525-01MR Description

K3525-01MR-VB K3525-01MR-VB Datasheet /$IBOOFM7 %4 Power MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) at TJ max.RDS(on) at 25 °C (Ω) Qg ma.

K3525-01MR Features

* Low figure-of-merit (FOM) Ron x Qg
* Low input capacitance (Ciss)
* Reduced switching and conduction losses
* Ultra low gate charge (Qg)

K3525-01MR Applications

* Server and telecom power supplies
* Switch mode power supplies (SMPS)
* Power factor correction power supplies (PFC)
* Lighting - High-intensity discharge (HID) - Fluorescent ballast lighting
* Industrial TO-220 FULLPAK D GDS Top View G S N-Channel MOSFE

📥 Download Datasheet

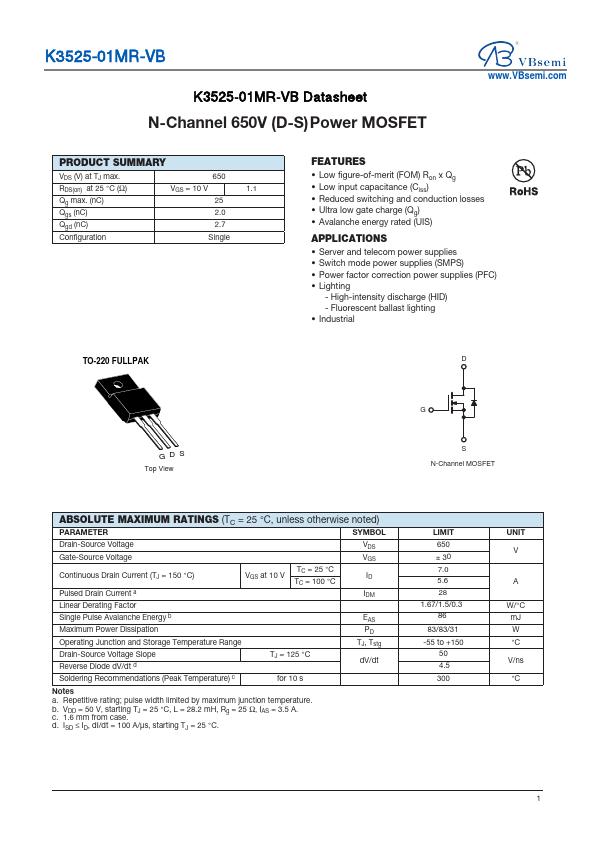

Preview of K3525-01MR PDF

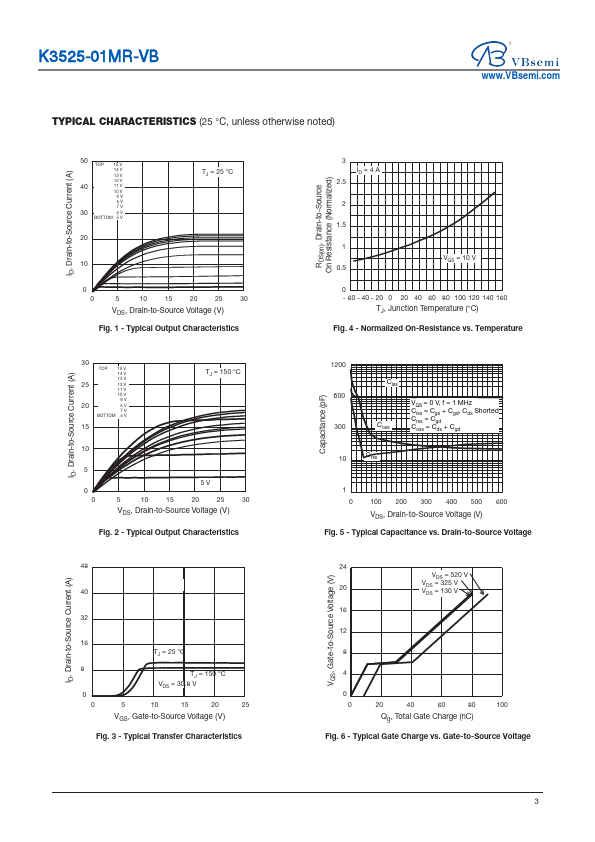

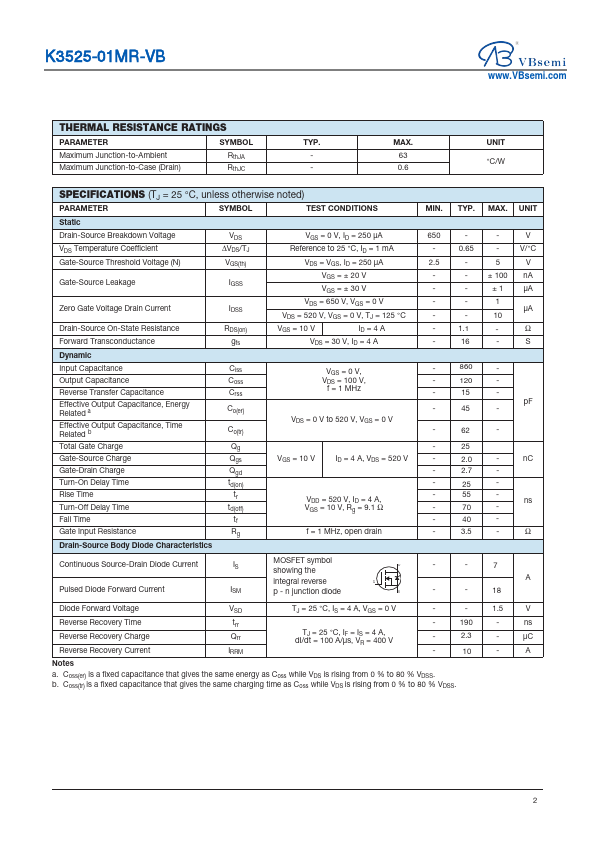

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
K3525-01MR
Manufacturer
VBsemi
File Size
285.44 KB
Datasheet
K3525-01MR-VBsemi.pdf
Description
N-Channel 650V Power MOSFET
