P4015S - P-Channel 40V MOSFET

Name: P4015S
SKU: P4015S-1594697

VBsemi

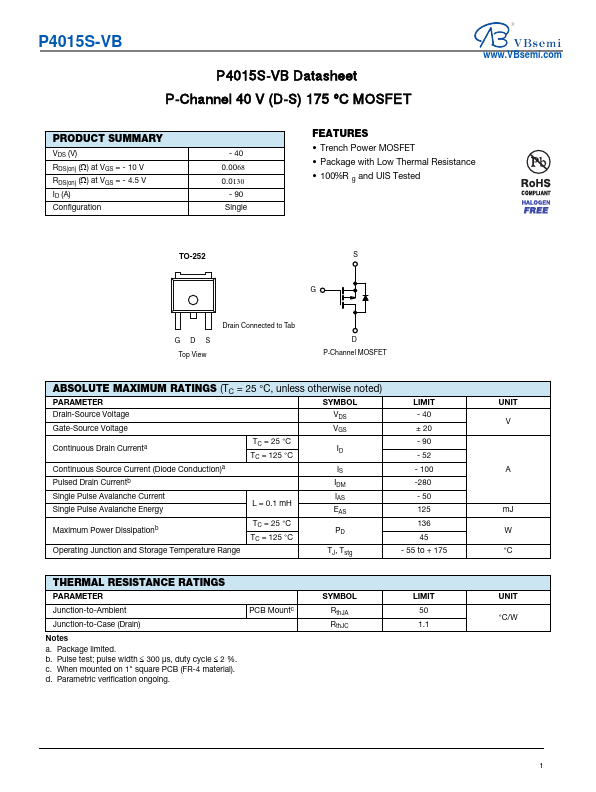

The P4015S by VBsemi is a P-Channel 40V MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	P4015S
Manufacturer	VBsemi
File Size	277.97 KB
Description	P-Channel 40V MOSFET
Datasheet	P4015S-VBsemi.pdf

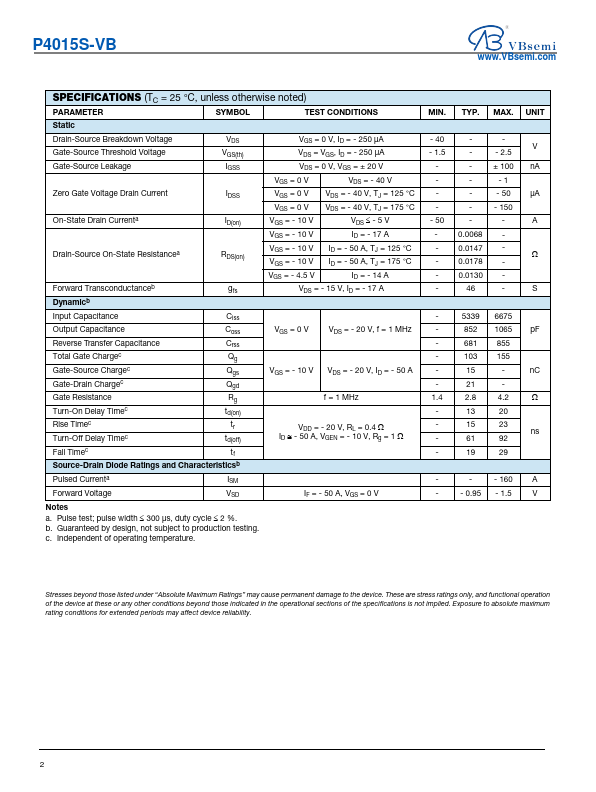

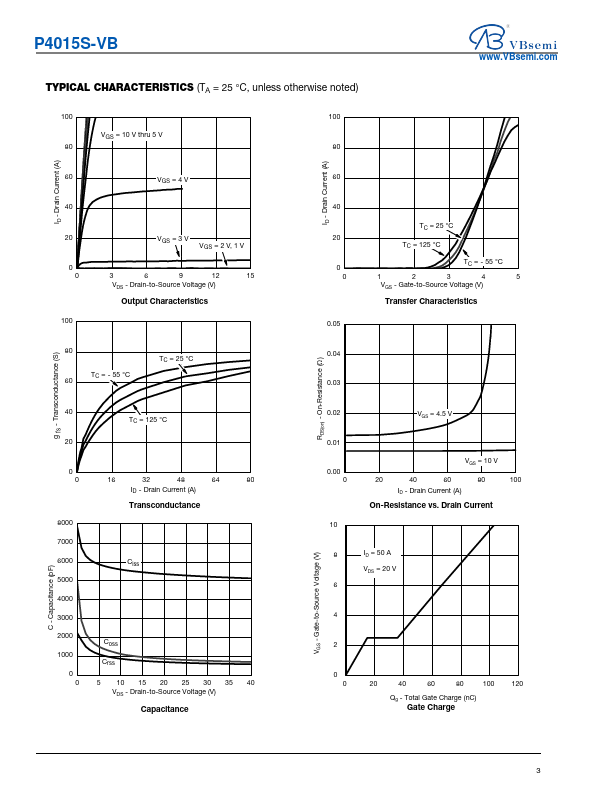

Additional preview pages of the P4015S datasheet.

Trench Power MOSFET.
Package with Low Thermal Resistance.
100%R g and UIS Tested TO-252 S G GDS Top View Drain Connected to Tab D P-Channel MOSFET.
