PA102FDG P-Channel 30V MOSFET

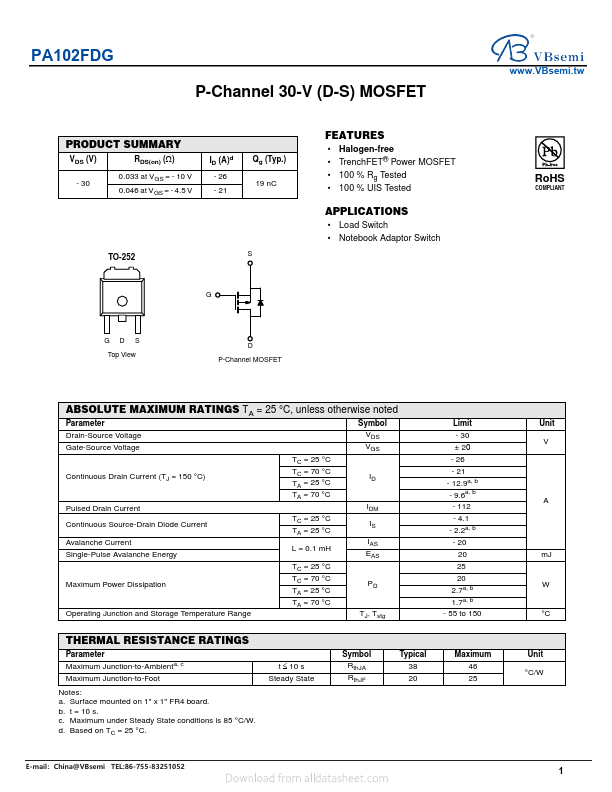

📥 Download Datasheet  Datasheet Preview Page 1

Description

PA102FDG P-Channel 30-V (D-S) MOSFET PRODUCT SUMMARY VDS (V) RDS(on) (Ω) - 30 0.033 at VGS = - 10 V 0.046 at VGS = - 4.5 V ID (A)d - 26 - 21 .

📥 Download Datasheet

Preview of PA102FDG PDF

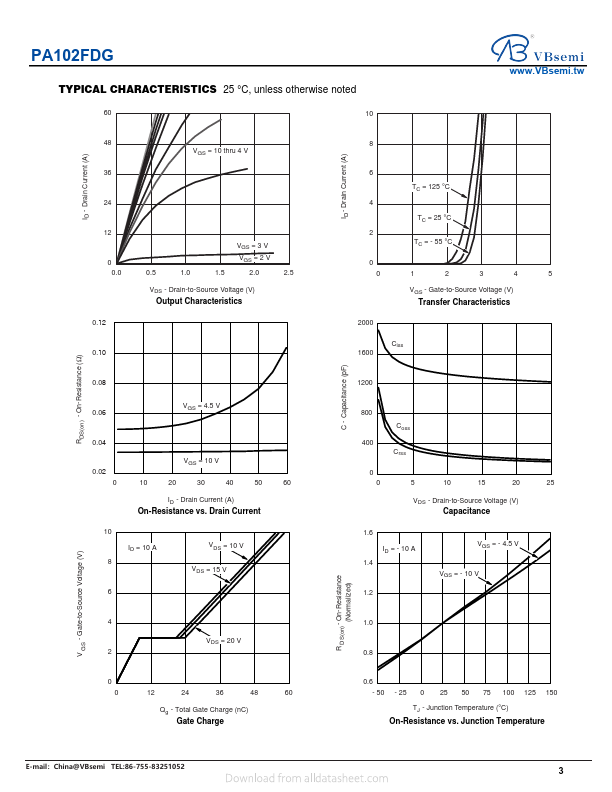

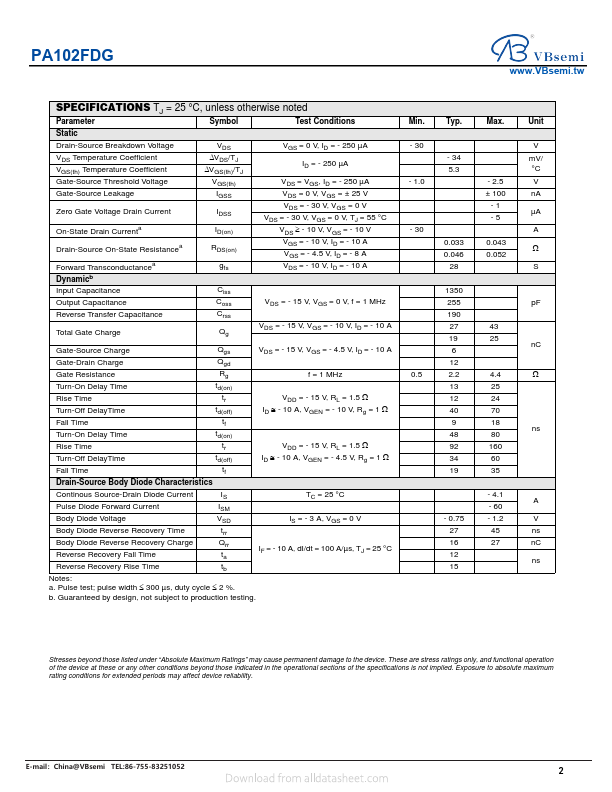

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
PA102FDG
Manufacturer
VBsemi
File Size
884.71 KB
Datasheet
PA102FDG-VBsemi.pdf
Description
P-Channel 30V MOSFET

Features

* Halogen-free
* TrenchFET® Power MOSFET
* 100 % Rg Tested

Applications

* Load Switch
* Notebook Adaptor Switch GDS Top View D P-Channel MOSFET www. VBsemi. tw RoHS COMPLIANT ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS TC = 25 °C Continuous Drain Current (TJ = 150
