PNM523T201E0 N-Channel 20V MOSFET

PNM523T201E0 Description

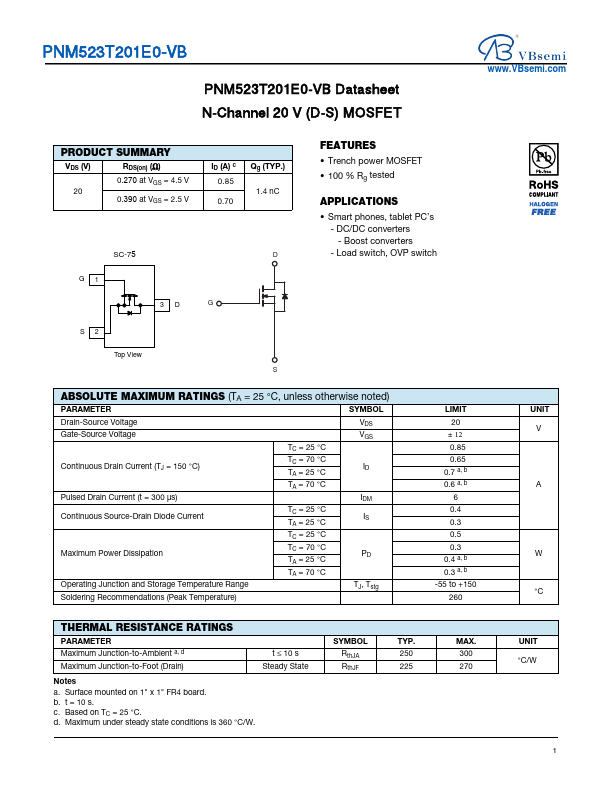

PNM523T201E0-VB PNM523T201E0-VB Datasheet N-Channel 20 V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.270 at VGS = 4.5 V 20 .

PNM523T201E0 Features

* Trench power MOSFET

PNM523T201E0 Applications

* Smart phones, tablet PC’s - DC/DC converters - Boost converters - Load switch, OVP switch S2 Top View S ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) PARAMETER SYMBOL Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 150 °C) Pulsed Drain Current (

📥 Download Datasheet

Preview of PNM523T201E0 PDF

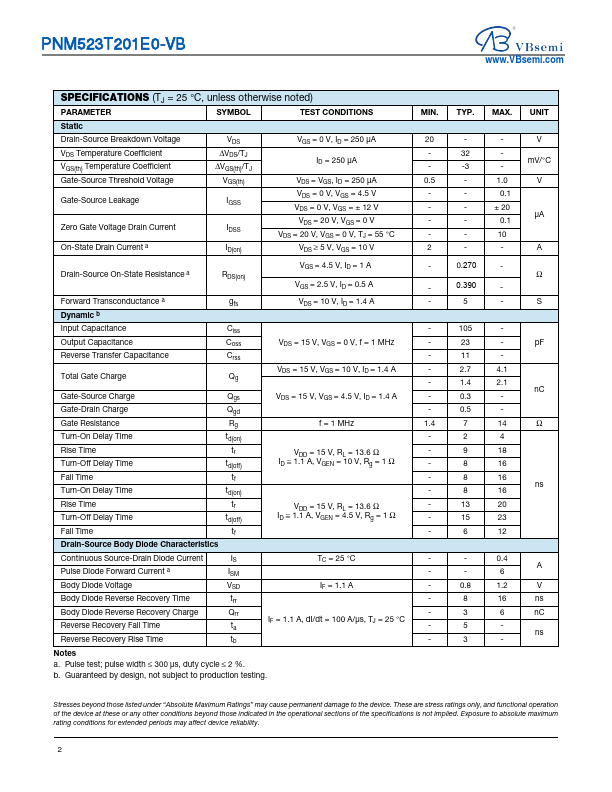

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PNM523T201E0
Manufacturer
VBsemi
File Size
284.58 KB
Datasheet
PNM523T201E0-VBsemi.pdf
Description
N-Channel 20V MOSFET
