PNM523T703E0-2 N-Channel MOSFET

PNM523T703E0-2 Description

PNM523T703E0-2 N-Channel MOSFET .
PNM523T703E0-2 is designed for high speed switching applications The enhancement mode MOS is extremely high density cell and low on-resistance.

PNM523T703E0-2 Applications

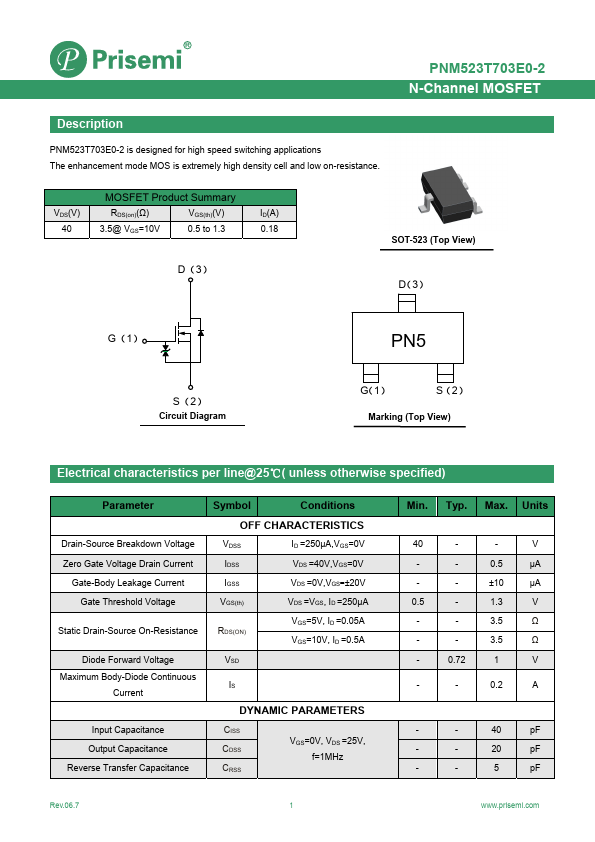

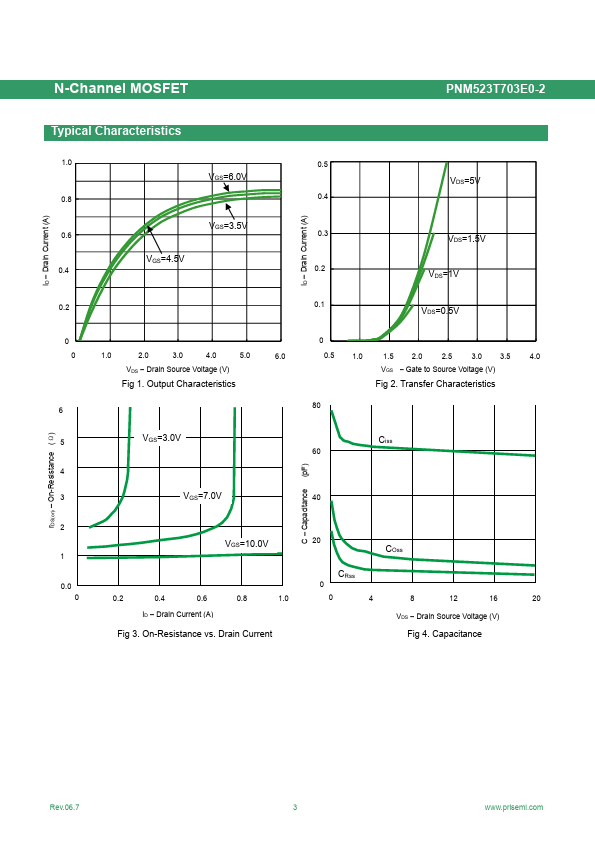

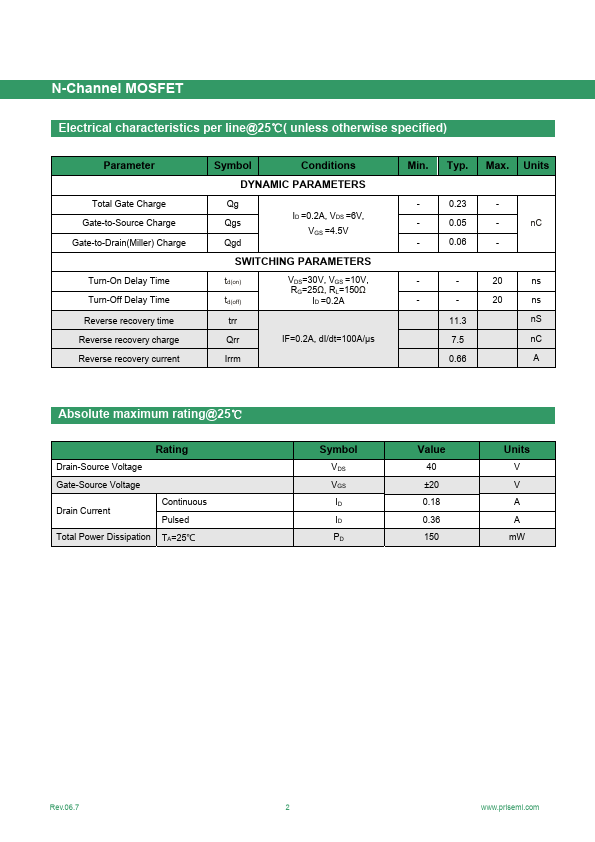

* The enhancement mode MOS is extremely high density cell and low on-resistance. VDS(V) 40 MOSFET Product Summary RDS(on)(Ω) VGS(th)(V) 3.5@ VGS=10V 0.5 to 1.3 ID(A) 0.18 D（3） SOT-523 (Top View) D（3） G（1） S（2） Circuit Diagram PN5 G（1） S（2） Marking (Top View) Electrical characteristics p
