QM2411V P-Channel 30V MOSFET

QM2411V Description

QM2411V-VB QM2411V-VB Datasheet P-Channel 30-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.049 at VGS = - 10 V - 30 0.054 .

QM2411V Features

* Halogen-free According to IEC 61249-2-21 Available

QM2411V Applications

* Load Switch 3 mm TSOP-6 Top V iew 1 6 2 5 3 4 2.85 mm (4) S (3) G (1, 2, 5, 6) D P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS TC = 25 °C Continuous Drain Current (TJ = 150 °

📥 Download Datasheet

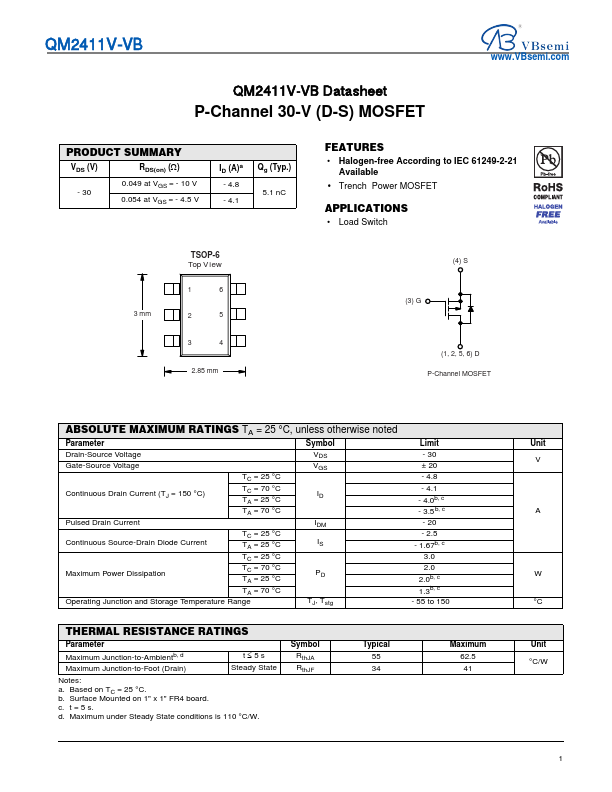

Preview of QM2411V PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
QM2411V
Manufacturer
VBsemi
File Size
220.66 KB
Datasheet
QM2411V-VBsemi.pdf
Description
P-Channel 30V MOSFET
