QM2601S N- and P-Channel MOSFET

QM2601S Description

QM2601S-VB QM2601S-VB Datasheet N- and P-Channel 20-V (D-S) MOSFETS www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.006 at VGS = 4.5 V N-Ch.

QM2601S Features

* Halogen-free

QM2601S Applications

* Load Switch
* DC/DC Converter D1 S2 RoHS COMPLIANT G2 G1 S1 N-Channel MOSFET D2 P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol N-Channel P-Channel Unit Drain-Source Voltage Gate-Source Voltage VDS 20 - 20 V VGS ± 12

📥 Download Datasheet

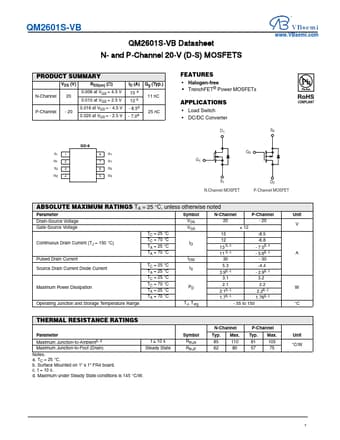

Preview of QM2601S PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
QM2601S
Manufacturer
VBsemi
File Size
300.51 KB
Datasheet
QM2601S-VBsemi.pdf
Description
N- and P-Channel MOSFET
