QM2602S - MOSFETs

Name: QM2602S
SKU: QM2602S-1113262

UBIQ

📥 Download Datasheet

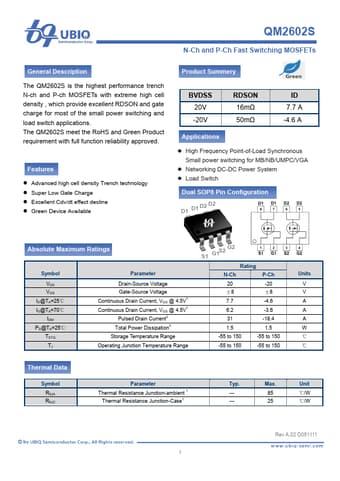

QM2602S Datasheet Preview — Preview of QM2602S PDF

Datasheet Details

Part number	QM2602S
Manufacturer	UBIQ
File Size	410.47 KB
Description	MOSFETs
Datasheet	QM2602S-UBIQ.pdf

QM2602S Product details

Description

The QM2602S is the highest performance trench N-ch and P-ch MOSFETs with extreme high cell density , which provide excellent RDSON and gate charge for most of the small power switching and load switch applications.

Features

z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent Cdv/dt effect decline z Green Device Available Product Summery BVDSS 20V -20V RDSON 16mΩ 50mΩ ID 7.7 A -4.6 A.
