QM200HA-2H HIGH POWER SWITCHING USE INSULATED TYPE

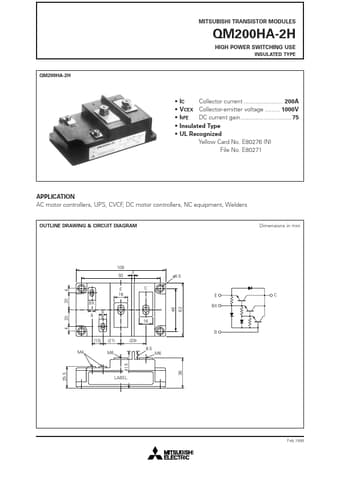

MITSUBISHI TRANSISTOR MODULES QM200HA-2H HIGH POWER SWITCHING USE INSULATED TYPE QM200HA-2H IC Collector current 200A VCEX Collector-emitter voltage 1000V hFE DC current gain 75 Insulated Type UL Recognized Yellow Card No. E80276 (N) File No. E80271 APPLICATION AC motor controllers, UPS, CVCF, DC motor controllers, NC equipment, Welders OUTLINE DRAWING & CIRCUIT DIAGRAM Dimensions in mm 108 93 E 16 BX 9 9 B 16 B (13) M4 (21) M6 41.5 48 .

QM200HA-2H Datasheet (66.00 KB)

QM200HA-2H Datasheet Preview — Preview of QM200HA-2H PDF

Datasheet Details

Part number:

QM200HA-2H

Manufacturer:

Mitsubishi Electric Semiconductor

File Size:

66.00 KB

Description:

High power switching use insulated type.
