QM200DY-2H Datasheet - Mitsubishi Electric Semiconductor

QM200DY-2H HIGH POWER SWITCHING USE INSULATED TYPE

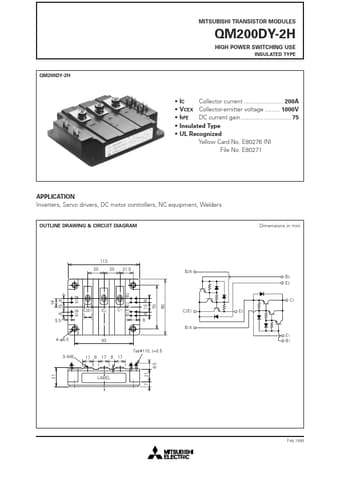

MITSUBISHI TRANSISTOR MODULES QM200DY-2H HIGH POWER SWITCHING USE INSULATED TYPE QM200DY-2H IC Collector current 200A VCEX Collector-emitter voltage 1000V hFE DC current gain 75 Insulated Type UL Recognized Yellow Card No. E80276 (N) File No. E80271 APPLICATION Inverters, Servo drivers, DC motor controllers, NC equipment, Welders OUTLINE DRAWING & CIRCUIT DIAGRAM Dimensions in mm 113 25 25 21.5 B2X B2 E2 B2 6 15 6 B1 E1 E2 6 15 6 B2.

QM200DY-2H_MitsubishiElectricSemiconductor.pdf

QM200DY-2H Datasheet Preview — Preview of QM200DY-2H PDF

Datasheet Details

Part number:

QM200DY-2H

Manufacturer:

Mitsubishi Electric Semiconductor

File Size:

77.75 KB

Description:

High power switching use insulated type.
