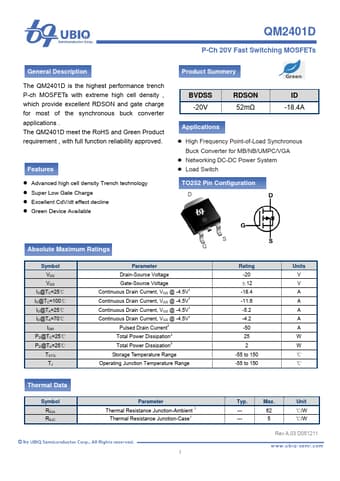

QM2401D P-Ch 20V Fast Switching MOSFETs

The QM2401D is the highest performance trench P-ch MOSFETs with extreme high cell density , which provide excellent RDSON and gate charge for most of the synchronous buck converter applications . The QM2401D meet the RoHS and Green Product requirement , with full function reliability approved. Featu.

QM2401D Features

* z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent CdV/dt effect decline z Green Device Available Product Summery BVDSS -20V RDSON 52mΩ ID -18.4A Applications z High Frequency Point-of-Load Synchronous Buck Converter for MB/NB/UMPC/VGA z Networking DC-DC Power Sy
