QM200DY-2HB HIGH POWER SWITCHING USE INSULATED TYPE

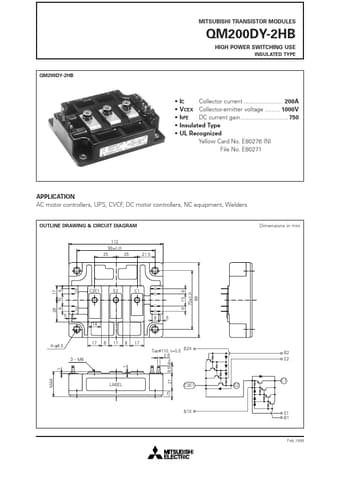

MITSUBISHI TRANSISTOR MODULES QM200DY-2HB HIGH POWER SWITCHING USE INSULATED TYPE QM200DY-2HB IC Collector current 200A VCEX Collector-emitter voltage 1000V hFE DC current gain 750 Insulated Type UL Recognized Yellow Card No. E80276 (N) File No. E80271 APPLICATION AC motor controllers, UPS, CVCF, DC motor controllers, NC equipment, Welders OUTLINE DRAWING & CIRCUIT DIAGRAM 112 93±0.25 25 25 Dimensions in mm 21.5 17 6 B1 E1 26 6 5 14.

QM200DY-2HB_MitsubishiElectricSemiconductor.pdf

QM200DY-2HB Datasheet Preview — Preview of QM200DY-2HB PDF

Datasheet Details

Part number:

QM200DY-2HB

Manufacturer:

Mitsubishi Electric Semiconductor

File Size:

86.06 KB

Description:

High power switching use insulated type.
