QM200DY-HB Datasheet - Mitsubishi Electric Semiconductor

QM200DY-HB Transistor Modules

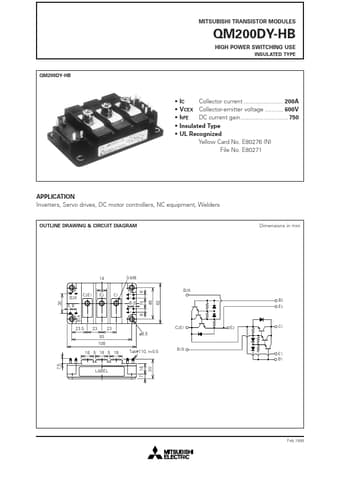

MITSUBISHI TRANSISTOR MODULES QM200DY-HB HIGH POWER SWITCHING USE INSULATED TYPE QM200DY-HB IC Collector current 200A VCEX Collector-emitter voltage 600V hFE DC current gain 750 Insulated Type UL Recognized Yellow Card No. E80276 (N) File No. E80271 APPLICATION Inverters, Servo drives, DC motor controllers, NC equipment, Welders OUTLINE DRAWING & CIRCUIT DIAGRAM Dimensions in mm 14 3-M6 6 B2X B2 E2 48 62 B2X 30 C2E1 E2 C1 B2 E2 .

QM200DY-HB Datasheet (68.86 KB)

QM200DY-HB Datasheet Preview — Preview of QM200DY-HB PDF

Datasheet Details

Part number:

QM200DY-HB

Manufacturer:

Mitsubishi Electric Semiconductor

File Size:

68.86 KB

Description:

Transistor modules.
