Part number:
QM2401G
Manufacturer:
UBIQ
File Size:
347.03 KB
Description:
P-ch 20v fast switching mosfets
QM2401G
UBIQ
347.03 KB
P-ch 20v fast switching mosfets

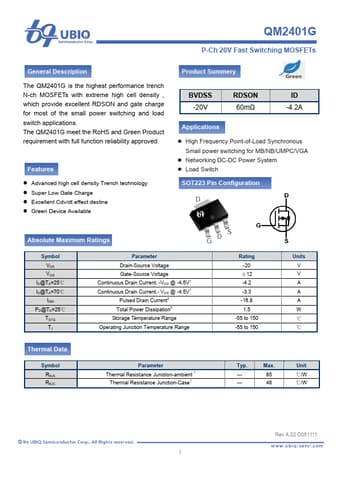

* z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent Cdv/dt effect decline z Green Device Available Product Summery BVDSS -20V RDSON 60mΩ ID -4.2A Applications z High Frequency Point-of-Load Synchronous Small power switching for MB/NB/UMPC/VGA z Networking DC-DC Po
