QM2402J Datasheet - UBIQ

N-Ch 20V Fast Switching MOSFETs

QM2402J Features

* z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent Cdv/dt effect decline z Green Device Available Product Summery BVDSS 20V RDSON 25mΩ ID 5.8A Applications z High Frequency Point-of-Load Synchronous Small power switching for MB/NB/UMPC/VGA z Networking DC-DC Powe

QM2402J General Description

The QM2402J is the highest performance trench N-ch MOSFETs with extreme high cell density , which provide excellent RDSON and gate charge for most of the small power switching and load switch applications. The QM2402J meet the RoHS and Green Product requirement with full function reliability approve.

QM2402J Datasheet (346.23 KB)

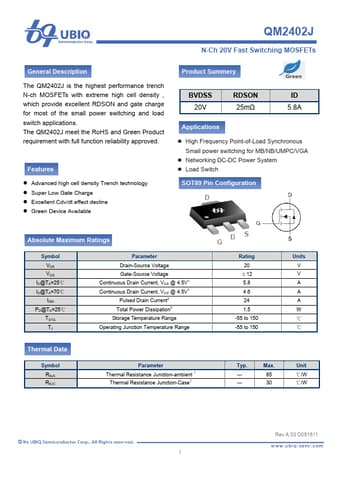

QM2402J Datasheet Preview — Preview of QM2402J PDF

Datasheet Details

Part number:

QM2402J

Manufacturer:

UBIQ

File Size:

346.23 KB

Description:

N-ch 20v fast switching mosfets.
