QM200DY-24B HIGH POWER SWITCHING USE INSULATED TYPE

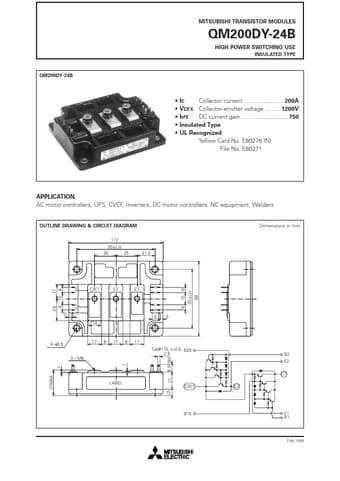

MITSUBISHI TRANSISTOR MODULES QM200DY-24B HIGH POWER SWITCHING USE INSULATED TYPE QM200DY-24B IC Collector current 200A VCEX Collector-emitter voltage 1200V hFE DC current gain 750 Insulated Type UL Recognized Yellow Card No. E80276 (N) File No. E80271 APPLICATION AC motor controllers, UPS, CVCF, Inverters, DC motor controllers, NC equipment, Welders OUTLINE DRAWING & CIRCUIT DIAGRAM 112 93±0.25 25 25 21.5 Dimensions in mm 17 6 70±0.25.

QM200DY-24B Datasheet (85.84 KB)

QM200DY-24B Datasheet Preview — Preview of QM200DY-24B PDF

Datasheet Details

Part number:

QM200DY-24B

Manufacturer:

Mitsubishi Electric Semiconductor

File Size:

85.84 KB

Description:

High power switching use insulated type.
