QM200HC-M HIGH POWER SWITCHING USE NON-INSULATED TYPE

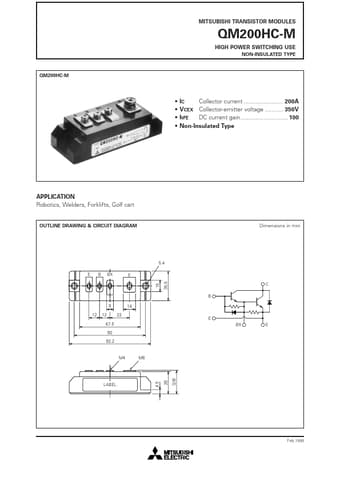

MITSUBISHI TRANSISTOR MODULES QM200HC-M HIGH POWER SWITCHING USE NON-INSULATED TYPE QM200HC-M IC Collector current 200A VCEX Collector-emitter voltage 350V hFE DC current gain 100 Non-Insulated Type APPLICATION Robotics, Welders, Forklifts, Golf cart OUTLINE DRAWING & CIRCUIT DIAGRAM Dimensions in mm 5.4 E B BX E 35.5 15 C B 8 12 12 67.5 80 92.2 22 14 E BX E M4 M6 LABEL 4.5 (28) 26 Feb.1999 MITSUBISHI TRANSISTOR MODULES QM200HC-M HIGH.

QM200HC-M_MitsubishiElectricSemiconductor.pdf

QM200HC-M Datasheet Preview — Preview of QM200HC-M PDF

Datasheet Details

Part number:

QM200HC-M

Manufacturer:

Mitsubishi Electric Semiconductor

File Size:

72.75 KB

Description:

High power switching use non-insulated type.
