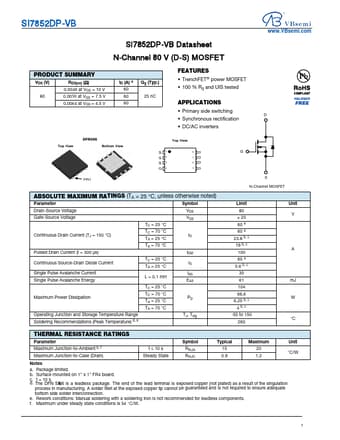

SI7852DP Datasheet - VBsemi

SI7852DP N-Channel 80V MOSFET

SI7852DP Features

* TrenchFET® power MOSFET

* 100 % Rg and UIS tested APPLICATIONS

* Primary side switching D

* Synchronous rectification

* DC/AC inverters Top View DFN5X6 Bottom View PIN1 Top View 1 8 2 7 3 6 4 5 ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherw

Datasheet Details

SI7852DP

VBsemi

272.00 KB

N-channel 80v mosfet.
