SM2217PSQG - P-Channel MOSFET

Features

  • TrenchFET® Power MOSFET.
  • Thermally Enhanced DFN2X2 Package - Small Footprint Area - Low On-Resistance.

📥 Download Datasheet

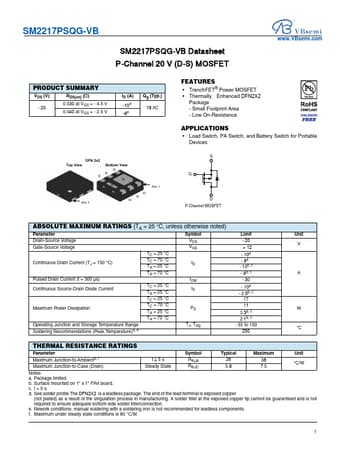

Datasheet preview – SM2217PSQG

Datasheet Details

Part number SM2217PSQG
Manufacturer VBsemi
File Size 530.86 KB
Description P-Channel MOSFET
Datasheet download datasheet SM2217PSQG Datasheet
