SP8M24-TB Datasheet - VBsemi

SP8M24-TB, N- & P-Channel 60V MOSFET

SP8M24-TB-VB SP8M24-TB-VB Datasheet N- and P-Channel 60-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) N-Channel 60 P-Channel - 60 RDS(on) .

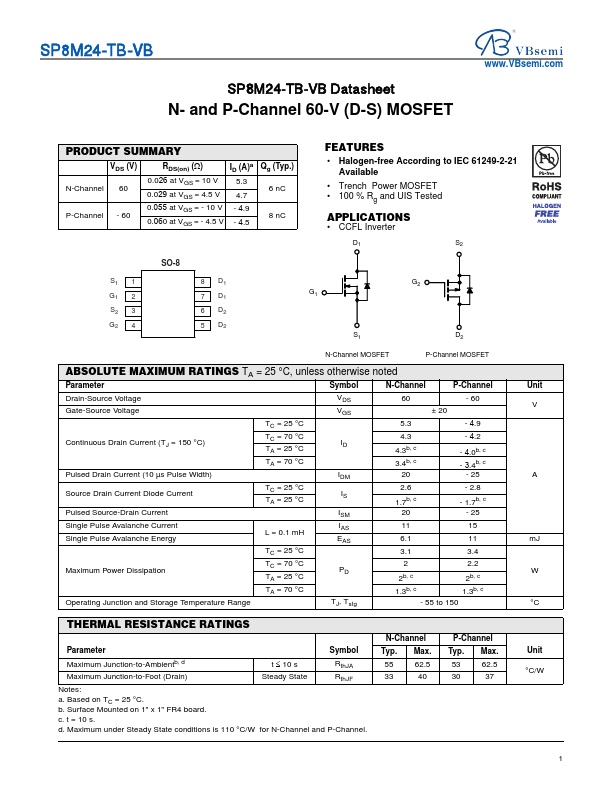

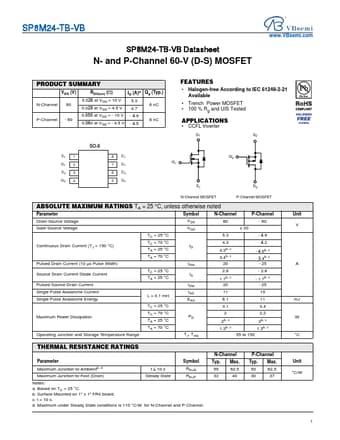

datasheet Preview Page 1 from Datasheet4u.com

SP8M24-TB-VBsemi.pdf

SP8M24-TB Datasheet Preview — Preview of SP8M24-TB PDF

Datasheet Details

Part number:

SP8M24-TB

Manufacturer:

VBsemi

File Size:

288.14 KB

Description:

N- & P-Channel 60V MOSFET

Features

* Halogen-free According to IEC 61249-2-21 Available
* Trench Power MOSFET

Applications

* CCFL Inverter D1 S2 S1 1 G1 2 S2 3 G2 4 SO-8 8 D1 7 D1 6 D2 5 D2 G1 S1 G2 D2 N-Channel MOSFET P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol N-Channel P-Channel Unit Drain-Source Voltage Gate-Source Voltage Continuous Drain Cur
