SUB85N03-07P, N-Channel 30-V MOSFET

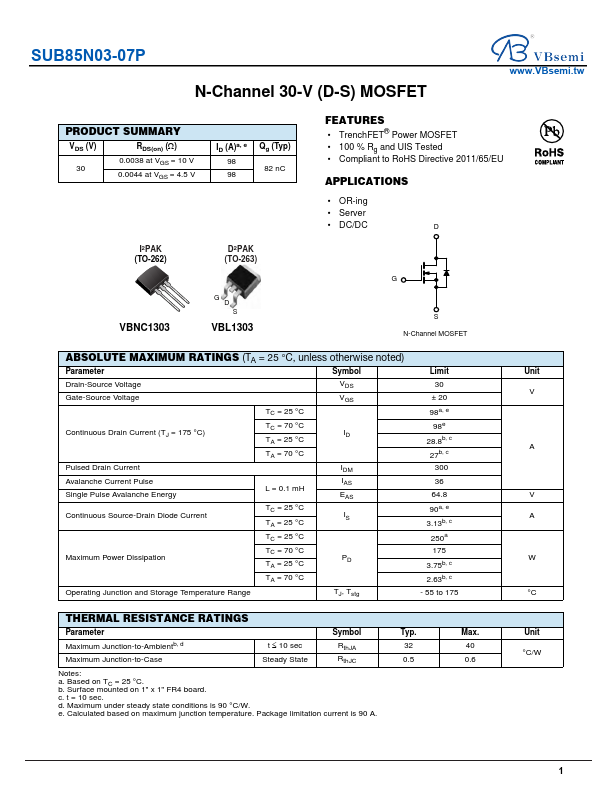

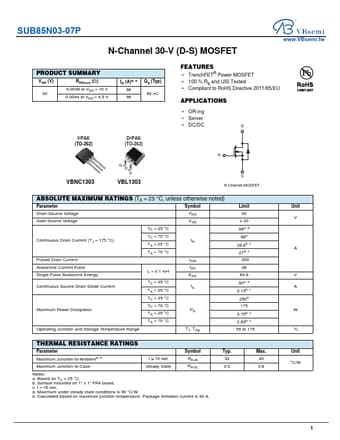

SUB85N03-07P N-Channel 30-V (D-S) MOSFET www.VBsemi.tw PRODUCT SUMMARY VDS (V) 30 RDS(on) () 0.0038 at VGS = 10 V 0.0044 at VGS = 4.5 V ID (A)a.

datasheet Preview Page 1 from Datasheet4u.com

SUB85N03-07P-VBsemi.pdf

SUB85N03-07P Datasheet Preview — Preview of SUB85N03-07P PDF

Datasheet Details

Part number:

SUB85N03-07P

Manufacturer:

VBsemi

File Size:

772.13 KB

Description:

N-Channel 30-V MOSFET

Features

* TrenchFET® Power MOSFET
* 100 % Rg and UIS Tested

Applications

* OR-ing
* Server
* DC/DC D G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Limit Unit Drain-Source Voltage Gate-Source Voltage VDS 30 V VGS ± 20 TC = 25 °C 98a, e Continuous Drain Current (TJ = 175 °C) T
